The graphics wrapper base class. More...

#include <GfxWrap.h>

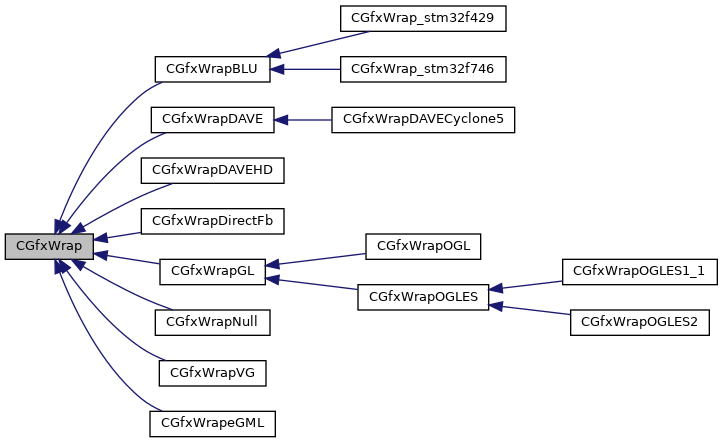

Inheritance diagram for CGfxWrap:

[legend]

Public Types
enum	RefreshCall_t { SINGLE_REFRESH , FIRST_REFRESH_OF_FRAME , INTERMEDIATE_REFRESH , LAST_REFRESH_OF_FRAME , FORCED_REFRESH }

Public Member Functions
void	ForceRefresh ()

eC_Bool	GetDoubleBufferingEnforcesFlipping ()

virtual eC_UInt	GetNOFImages ()

virtual eC_UInt	GetPhysicalScreenHeight ()=0

virtual eC_UInt	GetPhysicalScreenWidth ()=0

CGUICommonEnums::ImageType_t	GetScreenFormat () const

virtual eC_UInt	GetScreenHorizontalPPI () const

virtual eC_UInt	GetScreenVerticalPPI () const

virtual eC_UInt	GetVirtualScreenHeight ()=0

virtual eC_UInt	GetVirtualScreenWidth ()=0

virtual eC_UByte *	GetWorkingMemory (const eC_UInt &uiSize)

eC_String	GetWrapperName () const

virtual eC_Bool	ImageExists (const ImageResource_t eID) const =0

virtual void	ReleaseWorkingMemory (eC_UByte *pkMemory)

virtual void	ResetWorkingMemory ()

virtual void	RestoreWrapperState ()

void	SetDoubleBufferingEnforcesFlipping (const eC_Bool bDoubleBufferingEnforcesFlipping)

virtual void	SetFilteredBlit (const eC_Bool &bFilteredBlit)

void	SetGfxEnv (CGfxEnv *pkGfxEnv)

virtual void	SetOptimizedBlit (const eC_Bool &bOptimizedBlit)

void	SetScreenFormat (const CGUICommonEnums::ImageType_t &uiScreenFormat)

virtual void	SetScreenSize (const eC_UInt &uiWidth, const eC_UInt &uiHeight)

virtual void	SetWindowCaption (const eC_String &kText)

virtual void	StoreWrapperState ()

virtual void	SyncWorkingMemory ()

Drawing parameters
void	SetForegroundColor (const eC_UByte &ubRed, const eC_UByte &ubGreen, const eC_UByte &ubBlue, const eC_UByte &ubAlpha=255)

void	SetForegroundColor (const eC_UInt &uiCol)

void	UpdateGlobalAlpha (const eC_UByte &ubAlpha)

void	SetGlobalAlpha (const eC_UByte &ubAlpha)

virtual eC_Value	SetLineWidth (const eC_Value &vWidth)

eC_UInt	GetForegroundColor () const

eC_UByte	GetGlobalAlpha () const

eC_UByte	ApplyGlobalAlpha (const eC_UByte ubAlpha) const

Drawing primitives
void	Line (const CGUIRect &kAbsRect)

void	Rect (const CGUIRect &kAbsRect)

void	FilledRect (const CGUIRect &kAbsRect)

void	Ellipse (const CGUIRect &kAbsRect, const eC_Bool &bFilled)

void	Arc (const CGUIRect &kAbsRect, const eC_Value &vStartAngle, const eC_Value &vEndAngle, const eC_Value &vRotationAngle, const eC_Bool &bFilled)

void	Ring (const CGUIRect &kAbsRect, const eC_Value &vRingWidth, const eC_Value &vStartAngle, const eC_Value &vEndAngle, const eC_Value &vRotationAngle, const eC_Bool &bFilled)

void	Text (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_String *const lpString)

Clipping and invalidated rectangles
virtual void	RedrawGUI ()

virtual void	SetCliprect (const CGUIRect &NewAbsClipRect)=0

virtual void	ResetCliprect ()
	Resets the clipping rectangle.

virtual void	GetCliprect (CGUIRect &AbsClipRect) const

void	InvalidateRect (const CGUIRect &kInvalidRect)

void	InvalidateRect (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2)

const CGUIRect &	GetInvalidatedRect () const

virtual void	ClearInvalidRect ()

Image handling
void	BlitImg (const ImageResource_t &eID, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY)

void	BlitImg (const CGUIImageData &kImageData, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY)

void	BlitImgExt (const ImageResource_t &eID, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY, const eC_Value &vWidth, const eC_Value &vHeight, const eC_Bool &bStretch=true, const eC_UByte &ubAlpha=255)

virtual void	BlitImgNinePatch (const ImageResource_t &eID, const CGUIRect &kAbsRect, const eC_UInt uiTopBorder, const eC_UInt uiBottomBorder, const eC_UInt uiLeftBorder, const eC_UInt uiRightBorder, const eC_UByte &ubAlpha=255)

void	BlitImgNinePatch (const ImageResource_t &eID, const CGUIRect &kAbsRect, const CGUINinePatch &kNinePatch, const eC_UByte &ubAlpha=255)

void	BlitImgExt (const ImageResource_t &eID, const CGUIRect &kAbsRect, const eC_Bool &bStretch=true, const eC_UByte &ubAlpha=255)

void	BlitImgExt (const ImageResource_t &eID, const CGUIRect &kSrcAbsRect, const CGUIRect &kDstAbsRect, const eC_UByte &ubAlpha=255)

void	BlitImgExt (const ImageResource_t &eID, const eC_UInt &uiAbsSrcX, const eC_UInt &uiAbsSrcY, const eC_UInt &uiSrcWidth, const eC_UInt &uiSrcHeight, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY, const eC_Value &vDestWidth, const eC_Value &vDestHeight, const eC_UByte &ubAlpha=255, const eC_Value &vAngle=eC_FromFloat(0), const eC_Value &vRotCenterX=eC_FromFloat(0.5), const eC_Value &vRotCenterY=eC_FromFloat(0.5))

eC_UInt	GetImgWidth (const ImageResource_t &eID) const

eC_UInt	GetImgHeight (const ImageResource_t &eID) const

CGUIRect	GetImgOriginRect (const ImageResource_t &eID) const

Font handling
void	SetFont (const FontResource_t &eID)

void	SetFontSpacing (const eC_Float &fSpacing)

void	RequiredSpace (const eC_String *const pkText, eC_Value &vWidth, eC_Value &vHeight)

void	FittingNumChars (const eC_String *const pkText, eC_Value vWidthMax, eC_UInt &uiNumChars, const eC_Bool &bStartAtEnd=false)

eC_Int	GetAscender () const

eC_Int	GetDescender () const

eC_Int	GetInternalLeading () const

void	GetGlyphMetrics (const eC_Char cChar, CFntWrap::GlyphMetrics_t &kMetrics)

eC_Value	GetTextXPosAdjustment (const CGUIText::HorAligned_t eHorAlignment)

eC_Value	GetTextYPosAdjustment (const CGUIText::VerAligned_t eVerAlignment)

eC_Bool	SetNOFFonts (const eC_UInt uiNOFFonts)

eC_UInt	GetNOFFonts ()

void	ChangeFont (const FontResource_t &eFontID, const eC_Char *const pcPath, const eC_UInt &uiFontSize, const CFntWrap::GUIFont_t &eFontStyle)

void	LoadFont (const FontResource_t &eFontID)

void	UnloadFont (const FontResource_t &eFontID)

virtual eC_Bool	SupportCompressedFonts () const

virtual void	LoadGlyphData (CGUIImageData pkImageData, const eC_UInt &uiGlyphWidth, const eC_UInt &uiGlyphHeight, eC_UByte pkGlyphBitmap)

virtual void	UnloadGlyphData (CGUIImageData *pkImageData)

Static Public Member Functions
static void	DeleteInstance ()
	Delete the graphics wrapper instance.

static eC_UInt	GetNextPowerOf2 (const eC_Value &vValue)

Protected Member Functions
	CGfxWrap ()
	Constructor.

virtual	~CGfxWrap (void)
	Destructor.

virtual void	Arc (const eC_Value &vX1, const eC_Value &vY1, const eC_Value &vX2, const eC_Value &vY2, const eC_Value &vStartAngle, const eC_Value &vEndAngle, const eC_Value &vRotationAngle, const eC_Bool &bFilled)=0

void	DeInit ()
	Deinitialization.

virtual void	Ellipse (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2, const eC_Bool &bFilled)=0

virtual void	FilledRect (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2)=0

virtual void	Line (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2)=0
	the following methods are protected to prevent calling them directly More...

virtual void	Rect (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2)=0

virtual void	Ring (const eC_Value &vX1, const eC_Value &vY1, const eC_Value &vX2, const eC_Value &vY2, const eC_Value &vRingWidth, const eC_Value &vStartAngle, const eC_Value &vEndAngle, const eC_Value &vRotationAngle, const eC_Bool &bFilled)=0

virtual void	SetForegroundColorImpl (const eC_UByte &ubRed, const eC_UByte &ubGreen, const eC_UByte &ubBlue, const eC_UByte &ubAlpha=255)=0

Smart redraw
virtual eC_Bool	Refresh (const RefreshCall_t eRefreshCallType)=0

virtual void	StartHandleDraw (const CGUIRect &crkClipRect)

Callbacks
virtual void	StartRedrawGUI ()

virtual void	EndRedrawGUI ()
	Callback which is called at the end of RedrawGUI() after all Invalidated areas were drawn and refreshed.

virtual void	DestroyScreen ()
	Method to clean and release the screen which was created via the CreateScreen Method. More...

Resource management
eC_Bool	SetNOFImages (const eC_UInt uiNOFImages)

virtual eC_Bool	SetNOFImagesImpl (const eC_UInt uiNOFImages)

void	LoadImg (const eC_String &kPath, const ImageResource_t &eID)

void	LoadImg (void *pkMemory, const eC_UInt &uiWidth, const eC_UInt &uiHeight, const eC_UInt &eImageType, const ImageResource_t &eID)

virtual void	LoadImgImpl (const eC_String &kPath, const ImageResource_t &eID)=0

virtual void	LoadImgImpl (void *pkMemory, const eC_UInt &uiWidth, const eC_UInt &uiHeight, const eC_UInt &eImageType, const ImageResource_t &eID)=0

virtual void	RefreshImage (const ImageResource_t &eID, void *pkMemory)

virtual void	UnloadImg (const ImageResource_t &eID)

Abstract image methods
virtual eC_UInt	GetImageSize (const ImageResource_t &eID) const =0

virtual eC_UInt	GetImgWidthImpl (const ImageResource_t &eID) const =0

virtual eC_UInt	GetImgHeightImpl (const ImageResource_t &eID) const =0

virtual void	BlitImgExtImpl (const ImageResource_t &eID, const eC_UInt &uiAbsSrcX, const eC_UInt &uiAbsSrcY, const eC_UInt &uiSrcWidth, const eC_UInt &uiSrcHeight, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY, const eC_Value &vDestWidth, const eC_Value &vDestHeight, const eC_UByte &ubAlpha=255, const eC_Value &vAngle=eC_FromFloat(0), const eC_Value &vRotCenterX=eC_FromFloat(0.5), const eC_Value &vRotCenterY=eC_FromFloat(0.5))=0

virtual void	BlitImgExtImpl (const CGUIImageData &kImageData, const eC_Value &vAbsDestX, const eC_Value &vAbsDestY)=0

Invalidated rectangles
void	SetInvalidatedRect (const eC_Value &vAbsX1, const eC_Value &vAbsY1, const eC_Value &vAbsX2, const eC_Value &vAbsY2)

void	SetInvalidatedRect (const CGUIRect &NewAbsRect)

void	ResetInvalidatedRect ()
	Resets the invalidated rectangle.

Protected Attributes
eC_Bool	m_bDoubleBufferingEnforcesFlipping

eC_Bool	m_bFilteredBlit
	if filtered blit is active

eC_Bool	m_bInvalidationInLastFrame

eC_Bool	m_bOptimizedBlit
	if optimized blit is active

CGUIRect	m_kClippingRect

eC_Semaphore	m_kGfxWrapSemaphore
	Semaphore to lock access to methods used in a multi thread context.

CGUIRect	m_kInvalidatedRect

eC_TListDoubleLinked< CGUIRect >	m_kInvalidatedRectList
	This is the list of invalidated rectangular regions within the GUI.

eC_TListDoubleLinked< CGUIRect >	m_kLastFrameInvalidatedRectList
	This is the list of regions which have been invalidated during the LAST frame.

eC_String	m_kWrapperName
	name of the wrapper

CGfxEnv *	m_pkGfxEnv
	pointer to the graphics-environment

eC_UByte	m_ubAlpha
	Currently set global alpha value.

eC_UInt	m_uiColor
	Currently set foreground color.

eC_UInt	m_uiNOFImages
	total number of image-objects

eC_UInt	m_uiScreenHeight
	Screen height.

eC_UInt	m_uiScreenWidth
	Screen width.

eC_Value	m_vGlobalAlphaFactor

eC_Value	m_vLineWidth
	Line width in pixels.

eC_Value	m_vRenderingOffsetX
	offset in x-direction

eC_Value	m_vRenderingOffsetY
	offset in y-direction

Static Protected Attributes
static const eC_Value	cvTwoPi
	constant for 2 PI

Friends
class	CFntWrap

class	CGUI

class	CGUIBackgroundImageLoaderThread

class	CGUIComponentManager

class	CGUIImageCacheImpl

class	CGUIResourceManager

Bitmap Planes
virtual eC_Bool	DrawToBitmap (GUIBitmapPlaneID_t uiBitmapID)

virtual eC_Bool	DrawToScreen ()

virtual eC_TArray< eC_UByte > *	GetBitmapPlaneData (const GUIBitmapPlaneID_t &eBitmapPlaneID)

virtual void	SetTargetLayer (const eC_UInt &uiLayerID)

virtual void	SetRenderingOffset (const eC_Value &vOffsetX, const eC_Value &vOffsetY)

void	GetRenderingOffset (eC_Value &vOffsetX, eC_Value &vOffsetY)

virtual GUIBitmapPlaneID_t	CreateBitmapPlane (const CGUIObject &rkParentObject, const eC_Value &vWidth, const eC_Value &vHeight)

void	DeleteBitmapPlane (const GUIBitmapPlaneID_t uiBitmapID)

void	DeleteBitmapPlanes (const CGUIObject *pkObject)

CGUIBitmapPlane &	GetBitmapPlane (const GUIBitmapPlaneID_t uiBitmapID)

GUIBitmapPlaneID_t	GetUsedBitmapPlaneID () const

virtual CGUIBitmapPlane *	CreateGfxDependentBitmap (GUIBitmapPlaneID_t uiNewBitmapID, const CGUIObject &rkParentObject, const eC_Value &vWidth, const eC_Value &vHeight)

CGUIBitmapPlane &	GetDummyBitmap ()

virtual eC_Bool	FinishDrawToBitmap ()

Detailed Description

The graphics wrapper base class.

The methods declared in this base class are used by all Guiliani standard controls to display themselves. You may leave implementations of certain methods empty for your specific derivation if you know that you will not need them. For example you may decide not to implement the image loading functionality for your specific graphics wrapper. You are also free to add completely new methods to your own wrapper classes and use these within your custom-made controls.

Please be aware that due to the cross-platform character of the framework, not all functions declared within the CGfxWrap base class need to be available in all platform-specific implementations.

Member Enumeration Documentation

◆ RefreshCall_t

enum CGfxWrap::RefreshCall_t

The Refresh function is called for every invalidated rect of a frame. For some GFXWrappers it is necessary to know if it is the first or last call of a frame, so you can decide what to do. This might be a simple copy instruction of the invalidated area or the flip at the end of the frame. This enum contains the needed information.

Enumerator
SINGLE_REFRESH	Only one refresh in this frame. So it is the first and the last call.
FIRST_REFRESH_OF_FRAME	The first refresh call in this frame.
INTERMEDIATE_REFRESH	Any Refresh between the first and the last call.
LAST_REFRESH_OF_FRAME	The last refresh call in this frame.
FORCED_REFRESH	Refresh was forced. A refresh of this type is used in addition to one of the others, see ForceRefresh().

Member Function Documentation

◆ ApplyGlobalAlpha()

eC_UByte CGfxWrap::ApplyGlobalAlpha ( const eC_UByte ubAlpha ) const

inline

Applies the current global alpha to the given alpha value and returns the result. If e.g. the global alpha is 127, and the supplied alpha is 127, the returned value will be 64.

Parameters

ubAlpha The alpha value to which global alpha shall be applied.

Returns: The modified alpha value.

◆ Arc() [1/2]

void CGfxWrap::Arc	(	const CGUIRect &	kAbsRect,
		const eC_Value &	vStartAngle,
		const eC_Value &	vEndAngle,
		const eC_Value &	vRotationAngle,
		const eC_Bool &	bFilled
	)

Draws an arc defined by a CGUIRect

See also: CGfxWrap::Arc(const eC_Value& vX1, const eC_Value& vY1, const eC_Value& vX2, const eC_Value& vY2, const eC_Value& vStartAngle, const eC_Value& vEndAngle, const eC_Value& vRotationAngle, const eC_Bool &bFilled)

Parameters

kAbsRect	CGUIRect containing the rectangle corners' endpoints
vStartAngle	start-angle of the arc
vEndAngle	end-angle of the arc
vRotationAngle	rotation-angle
bFilled	Specifies whether the arc will be drawn outlined (false) or filled (true)

◆ Arc() [2/2]

virtual void CGfxWrap::Arc	(	const eC_Value &	vX1,
		const eC_Value &	vY1,
		const eC_Value &	vX2,
		const eC_Value &	vY2,
		const eC_Value &	vStartAngle,
		const eC_Value &	vEndAngle,
		const eC_Value &	vRotationAngle,
		const eC_Bool &	bFilled
	)

protectedpure virtual

Draws an arc which is completly inside the rectangle described through the rectangle the top left edge at (vAbsX1, vAbsY1) and bottom right edge at (vAbsX2, vAbsY2). The arc will be filled out if the last parameter is true 0-degrees is at the mathematically correct position on the unit-circle angles are increasing in counter-clockwise direction. rotation-angle is increasing in clockwise direction, i.e. rotating by 90 degrees will result in the 0-degress being at the bottom-center

Parameters

vX1	X-coordinate of bounding rectangle's top left corner
vY1	Y-Coordinate of bounding rectangle's top left corner
vX2	X-coordinate of bounding rectangle's bottom right corner
vY2	Y-Coordinate of bounding rectangle's bottom right corner
vStartAngle	start-angle
vEndAngle	end-angle
vRotationAngle	rotation-angle
bFilled	Specifies whether the arc will be drawn outlined (false) or filled (true)

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ BlitImg() [1/2]

void CGfxWrap::BlitImg	(	const CGUIImageData &	kImageData,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY
	)

inline

Blit an image. Blits (draws) the image contained in the data to the specified position on the screen.

Parameters

kImageData	image-data
vAbsDestX	Destination x-position.
vAbsDestY	Destination y-position.

◆ BlitImg() [2/2]

void CGfxWrap::BlitImg	(	const ImageResource_t &	eID,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY
	)

Blit an image. Blits (draws) the image associated with the supplied Image-identifier to the specified position on the screen.

Parameters

eID	Identifier of the image to be blitted.
vAbsDestX	Destination x-position.
vAbsDestY	Destination y-position.

◆ BlitImgExt() [1/4]

void CGfxWrap::BlitImgExt	(	const ImageResource_t &	eID,
		const CGUIRect &	kAbsRect,
		const eC_Bool &	bStretch = `true`,
		const eC_UByte &	ubAlpha = `255`
	)

Extended blit of an image. Performs a stretch blit of the image associated with the supplied Image Identifier. The image will be blitted to the position given by the upper left corner of the supplied rectangle. It will be stretched to meet the desired width and height if the bStretch flag is set to true.

Parameters

eID	Identifier of the image to be blitted.
kAbsRect	Rectangle describing the destination position and size of the image on the screen
bStretch	Image will be stretched to meet the desired size if set to true.
ubAlpha	Degree of transparency. 0=transparent 255=opaque Default is opaque.

◆ BlitImgExt() [2/4]

void CGfxWrap::BlitImgExt	(	const ImageResource_t &	eID,
		const CGUIRect &	kSrcAbsRect,
		const CGUIRect &	kDstAbsRect,
		const eC_UByte &	ubAlpha = `255`
	)

Extended blit of an image. Performs a stretch blit of the image associated with the supplied Image Identifier. An area of the image (which is defined by kSrcAbsRect) will be blitted to the position given by the upper left corner of kDstAbsRect. It will be stretched to meet the desired width and height.

Parameters

eID	Identifier of the image to be blitted.
kSrcAbsRect	Rectangle describing the relevant area within the source image
kDstAbsRect	Rectangle describing the destination position and size of the image on the screen
ubAlpha	Degree of transparency. 0=transparent 255=opaque Default is opaque.

◆ BlitImgExt() [3/4]

void CGfxWrap::BlitImgExt	(	const ImageResource_t &	eID,
		const eC_UInt &	uiAbsSrcX,
		const eC_UInt &	uiAbsSrcY,
		const eC_UInt &	uiSrcWidth,
		const eC_UInt &	uiSrcHeight,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY,
		const eC_Value &	vDestWidth,
		const eC_Value &	vDestHeight,
		const eC_UByte &	ubAlpha = `255`,
		const eC_Value &	vAngle = `eC_FromFloat(0)`,
		const eC_Value &	vRotCenterX = `eC_FromFloat(0.5)`,
		const eC_Value &	vRotCenterY = `eC_FromFloat(0.5)`
	)

Extended blit of an image. Performs a rotated stretch blit of the image associated with the supplied Image Identifier. An area of the image (which is defined by uiAbsSrcX, uiAbsSrcY, uiSrcWidth and uiSrcHeight) will be blitted to the position given by vAbsDestX and vAbsDestY. It will be stretched to meet vDestWidth and vDestHeight if the bStretch flag is set to true. Optionally, the image can be rotated by vAngle degrees around a point defined by vRotCenterX and vRotCenterY. The center of rotation is given in coordinates within a range of 0 to 1 (similar to U/V coordinates), where (0,0) is the image's top left corner, (1,1) equals the lower right corner and (0.5, 0.5) corresponds to the image's center.

Parameters

eID	Identifier of the image to be blitted.
uiAbsSrcX	X coordinate of upper left corner of the relevant area within the source image
uiAbsSrcY	Y coordinate of upper left corner of the relevant area within the source image
uiSrcWidth	Width of the relevant area within the source image
uiSrcHeight	Height of the relevant area within the source image
vAbsDestX	Destination X position in absolute coordinates
vAbsDestY	Destination Y position in absolute coordinates
vDestWidth	Destination width
vDestHeight	Destination height
ubAlpha	Degree of transparency. 0=transparent 255=opaque Default is opaque.
vAngle	Angle in degrees by which the image will be rotated
vRotCenterX	Rotation center X. In range of 0 to 1 (like U/V coordinates)
vRotCenterY	Rotation center Y. In range of 0 to 1 (like U/V coordinates)

◆ BlitImgExt() [4/4]

void CGfxWrap::BlitImgExt	(	const ImageResource_t &	eID,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY,
		const eC_Value &	vWidth,
		const eC_Value &	vHeight,
		const eC_Bool &	bStretch = `true`,
		const eC_UByte &	ubAlpha = `255`
	)

Extended blit of an image. Performs a stretch blit of the image associated with the supplied Image Identifier. The image will be blitted to the position specified by the x- and y-parameter and automatically stretched to meet the desired width and height if the bStretch flag is set to true.

Parameters

eID	Identifier of the image to be blitted.
vAbsDestX	Destination x-position.
vAbsDestY	Destination y-position.
vWidth	Target width. Image will be automatically stretched if necessary, if bStretch is true.
vHeight	Target height. Image will be automatically stretched if necessary, if bStretch is true.
bStretch	Image will be stretched to meet the desired size if set to true.
ubAlpha	Degree of transparency. 0=transparent 255=opaque Default is opaque.

◆ BlitImgExtImpl() [1/2]

virtual void CGfxWrap::BlitImgExtImpl	(	const CGUIImageData &	kImageData,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY
	)

protectedpure virtual

Blits an image. This MUST be implemented by all graphics wrappers. It is ensured that the supplied image ID is in the valid range and is not DUMMY_IMAGE. For detailed explanations, please refer to CGfxWrap::BlitImgExt

Parameters

kImageData	ImageData
vAbsDestX	Destination X position in absolute coordinates
vAbsDestY	Destination Y position in absolute coordinates

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrap_stm32f429, CGfxWrap_stm32f746, and CGfxWrapNull.

◆ BlitImgExtImpl() [2/2]

virtual void CGfxWrap::BlitImgExtImpl	(	const ImageResource_t &	eID,
		const eC_UInt &	uiAbsSrcX,
		const eC_UInt &	uiAbsSrcY,
		const eC_UInt &	uiSrcWidth,
		const eC_UInt &	uiSrcHeight,
		const eC_Value &	vAbsDestX,
		const eC_Value &	vAbsDestY,
		const eC_Value &	vDestWidth,
		const eC_Value &	vDestHeight,
		const eC_UByte &	ubAlpha = `255`,
		const eC_Value &	vAngle = `eC_FromFloat(0)`,
		const eC_Value &	vRotCenterX = `eC_FromFloat(0.5)`,
		const eC_Value &	vRotCenterY = `eC_FromFloat(0.5)`
	)

protectedpure virtual

Blits an image. This MUST be implemented by all graphics wrappers. It is ensured that the supplied image ID is in the valid range and is not DUMMY_IMAGE. For detailed explanations, please refer to CGfxWrap::BlitImgExt

Parameters

eID	Identifier of the image to be blitted.
uiAbsSrcX	X coordinate of upper left corner of the relevant area within the source image
uiAbsSrcY	Y coordinate of upper left corner of the relevant area within the source image
uiSrcWidth	Width of the relevant area within the source image
uiSrcHeight	Height of the relevant area within the source image
vAbsDestX	Destination X position in absolute coordinates
vAbsDestY	Destination Y position in absolute coordinates
vDestWidth	Destination width
vDestHeight	Destination height
ubAlpha	Degree of transparency. 0=transparent 255=opaque Default is opaque.
vAngle	Angle in degrees by which the image will be rotated
vRotCenterX	Rotation center X. In range of 0 to 1 (like U/V coordinates)
vRotCenterY	Rotation center Y. In range of 0 to 1 (like U/V coordinates)

Implemented in CGfxWrapVG, CGfxWrapBLU, CGfxWrapNull, CGfxWrapDirectFb, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrap_stm32f429, and CGfxWrap_stm32f746.

◆ BlitImgNinePatch() [1/2]

void CGfxWrap::BlitImgNinePatch	(	const ImageResource_t &	eID,
		const CGUIRect &	kAbsRect,
		const CGUINinePatch &	kNinePatch,
		const eC_UByte &	ubAlpha = `255`
	)

Nine-Patch blit of an image.

See also: BlitImgNinePatch(const ImageResource_t &eID, const CGUIRect& kAbsRect, const eC_UInt uiTopBorder, const eC_UInt uiBottomBorder, const eC_UInt uiLeftBorder, const eC_UInt uiRightBorder, const eC_UByte &ubAlpha)

Parameters

eID	Identifier of the image to be blitted.
kAbsRect	Rectangle describing the destination position and size of the image on the screen
kNinePatch	Nine-Patch describing the borders
ubAlpha	Degree of transparency. 0=transparent 255=opaque. Default is opaque.

◆ BlitImgNinePatch() [2/2]

virtual void CGfxWrap::BlitImgNinePatch	(	const ImageResource_t &	eID,
		const CGUIRect &	kAbsRect,
		const eC_UInt	uiTopBorder,
		const eC_UInt	uiBottomBorder,
		const eC_UInt	uiLeftBorder,
		const eC_UInt	uiRightBorder,
		const eC_UByte &	ubAlpha = `255`
	)

virtual

Nine-Patch blit of an image. Performs an intelligent 9-patch stretch blit of the image associated with the supplied Image Identifier. The image will be blitted to the position given by the upper left corner of the supplied rectangle and stretched to the desired width and height. To reduce visual artifacts during stretching, the image will automatically be split up into 9 parts. The four corners will be left unscaled, the four edges are each scaled in one axis, and the middle part is stretched in both axes. The two parameters uiXBorder and uiYBorder specify the width/height of the sections in pixels.

See also: CGUINinePatch

Parameters

eID	Identifier of the image to be blitted.
kAbsRect	Rectangle describing the destination position and size of the image on the screen
uiTopBorder	Height of the topmost three sections of the Nine-patch in pixels
uiBottomBorder	Height of the lowermost three sections of the Nine-patch in pixels
uiLeftBorder	Width of the leftmost three sections of the Nine-patch in pixels
uiRightBorder	Width of the rightmost three sections of the Nine-patch in pixels
ubAlpha	Degree of transparency. 0=transparent 255=opaque. Default is opaque.

Reimplemented in CGfxWrapGL.

◆ ChangeFont()

void CGfxWrap::ChangeFont	(	const FontResource_t &	eFontID,
		const eC_Char *const	pcPath,
		const eC_UInt &	uiFontSize,
		const CFntWrap::GUIFont_t &	eFontStyle
	)

Change a font identified by pcPath in an array of fonts at position eFontID. If the font already exists, it is unloaded first.

Parameters

eFontID	id (and hence index) of the font.
pcPath	Path or name of the font.
uiFontSize	Size of the font.
eFontStyle	Style of the font (italic, underline, bold, ... see GUIFont.h).

◆ ClearInvalidRect()

virtual void CGfxWrap::ClearInvalidRect ( )

inlinevirtual

Called for each invalidated rectangle right before CGUI::HandleDraw() is called. A derived graphics wrapper can implement this method to do necessary clean-up, if required, before the GUI tree is drawn. Since HandleDraw will only affect the current invalidated rectangle, this method should also restrict its operations to that region of the screen.

◆ CreateBitmapPlane()

virtual GUIBitmapPlaneID_t CGfxWrap::CreateBitmapPlane	(	const CGUIObject &	rkParentObject,
		const eC_Value &	vWidth,
		const eC_Value &	vHeight
	)

virtual

Creates a BitmapPlane with given width and height.

Parameters

rkParentObject	reference to the GUIObject which will be the parent of the BitmapPlane
vWidth	width of the new BitmapPlane
vHeight	height of the new BitmapPlane

Returns: the ID of the new generated BitmapPlane

◆ CreateGfxDependentBitmap()

virtual CGUIBitmapPlane * CGfxWrap::CreateGfxDependentBitmap	(	GUIBitmapPlaneID_t	uiNewBitmapID,
		const CGUIObject &	rkParentObject,
		const eC_Value &	vWidth,
		const eC_Value &	vHeight
	)

protectedvirtual

Method which will be called by CreateBitmap to instantiate a new Bitmap-Object. This Method needs to be implemented by every derived GfxWrapper. If a GfxWrapper does not support Bitmap-Handling, he may create an CGUIBaseBitmap

See also: Bitmap planes

Parameters

uiNewBitmapID	ID of the new BitmapPlane
rkParentObject	reference to the GUIObject which will be the parent of the bitmap
vWidth	width of the new bitmap
vHeight	height of the new bitmap

Returns: pointer to the new created BitmapObject

Reimplemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapGL, CGfxWrapOGL, CGfxWrapOGLES1_1, and CGfxWrapOGLES2.

◆ DeleteBitmapPlane()

void CGfxWrap::DeleteBitmapPlane ( const GUIBitmapPlaneID_t uiBitmapID )

Deletes the BitmapPlane with the given ID.

Parameters

uiBitmapID ID of the BitmapPlane to delete

◆ DeleteBitmapPlanes()

void CGfxWrap::DeleteBitmapPlanes ( const CGUIObject * pkObject )

Deletes all BitmapPlanes belonging to the given Object.

Parameters

pkObject pointer of the Object whose BitmapPlanes will be deleted

◆ DestroyScreen()

virtual void CGfxWrap::DestroyScreen ( )

inlineprotectedvirtual

Method to clean and release the screen which was created via the CreateScreen Method.

Reimplemented in CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, and CGfxWrapDirectFb.

◆ DrawToBitmap()

virtual eC_Bool CGfxWrap::DrawToBitmap ( GUIBitmapPlaneID_t uiBitmapID )

virtual

Changes the RenderTarget to the BitmapPlane with the given ID. All successive GfxWrap draw commands will be done in the bitmap of this plane instead of within the framebuffer

Parameters

uiBitmapID ID of the BitmapPlane in which will be drawn.

Returns: True if the BitmapPlane with given ID exists, otherwise False

Reimplemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, and CGfxWrapGL.

◆ DrawToScreen()

virtual eC_Bool CGfxWrap::DrawToScreen ( )

virtual

Activates the Screen as active RenderTarget again

Returns: True if the changing was successful, otherwise False

Reimplemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, and CGfxWrapGL.

◆ Ellipse() [1/2]

void CGfxWrap::Ellipse	(	const CGUIRect &	kAbsRect,
		const eC_Bool &	bFilled
	)

Draws an ellipse defined by a CGUIRect

See also: CGfxWrap::Ellipse(const eC_Value& vAbsX1, const eC_Value& vAbsY1, const eC_Value& vAbsX2, const eC_Value& vAbsY2, const eC_Bool &bFilled)

Parameters

kAbsRect	CGUIRect containing the rectangle corners' endpoints
bFilled	Specifies whether the ellipse will be drawn outlined (false) or filled (true)

◆ Ellipse() [2/2]

virtual void CGfxWrap::Ellipse	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2,
		const eC_Bool &	bFilled
	)

protectedpure virtual

Draws an ellipse which is completly inside the rectangle described through the rectangle the top left edge at (vAbsX1, vAbsY1) and bottom right edge at (vAbsX2, vAbsY2). The ellipse will be filled out if the last parameter is true

Parameters

vAbsX1	X-coordinate of bounding rectangle's top left corner
vAbsY1	Y-Coordinate of bounding rectangle's top left corner
vAbsX2	X-coordinate of bounding rectangle's bottom right corner
vAbsY2	Y-Coordinate of bounding rectangle's bottom right corner
bFilled	Specifies whether the ellipse will be drawn outlined (false) or filled (true)

Implemented in CGfxWrapBLU, CGfxWrapeGML, CGfxWrapNull, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, CGfxWrap_stm32f746, CGfxWrapGL, CGfxWrapDAVE, and CGfxWrapDAVEHD.

◆ FilledRect() [1/2]

void CGfxWrap::FilledRect ( const CGUIRect & kAbsRect )

Draws a filled rectangle defined by a CGUIRect

Parameters

kAbsRect CGUIRect containing the rectangle corners' endpoints

See also: CGfxWrap::FilledRect(const eC_Value& vAbsX1, const eC_Value& vAbsY1, const eC_Value& vAbsX2, const eC_Value& vAbsY2)

◆ FilledRect() [2/2]

virtual void CGfxWrap::FilledRect	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2
	)

protectedpure virtual

Draws a filled rectangle with the top left edge at (vAbsX1, vAbsY1) and bottom right edge at (vAbsX2, vAbsY2) The bottom edge and the right edge is not included in the drawn rect. e.g. FilledRect(0, 0, 10, 10); the rect is drawn from (0,0) to (9,9) (both included).

See also: CGUIObject::GetAbsRect()

Parameters

vAbsX1	X-coordinate of top left corner
vAbsY1	Y-Coordinate of top left corner
vAbsX2	X-coordinate of bottom right corner
vAbsY2	Y-Coordinate of bottom right corner

Implemented in CGfxWrapBLU, CGfxWrapNull, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, CGfxWrap_stm32f746, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, and CGfxWrapGL.

◆ FinishDrawToBitmap()

virtual eC_Bool CGfxWrap::FinishDrawToBitmap ( )

protectedvirtual

This is called by the framework when rendering to a bitmap plane is finished.

Returns: true if successful

◆ FittingNumChars()

void CGfxWrap::FittingNumChars	(	const eC_String *const	pkText,
		eC_Value	vWidthMax,
		eC_UInt &	uiNumChars,
		const eC_Bool &	bStartAtEnd = `false`
	)

Calculates the number of characters that fit in the given maximum width for a given text-string using the currently set font.

Parameters

pkText	The text.
vWidthMax	Maximum width of the font in pixels.
uiNumChars	Reference to the numbers of characters that fit given the maximum width.
bStartAtEnd	if this is true the text will be processed the other way round (e.g. RTL-languages)

◆ ForceRefresh()

void CGfxWrap::ForceRefresh ( )

inline

Forces the graphics wrapper to call Refresh() in the next frame, no matter if anything was invalidated. An application can use this when implementing a derived graphics wrapper that for instance displays a changing background image that is not known to Guiliani. The framework will call Refresh() at least once, using the refresh type FORCED_REFRESH. Any other necessary refresh calls will take place after that. At the time of this call, the invalidated rectangle may not be comprehensive and the absolute object positions are not updated yet.

◆ GetAscender()

eC_Int CGfxWrap::GetAscender ( ) const

Returns the currently set font's ascender-metric. If the ascender is not supported by a given Font-Wrapper, this returns 0.

Returns: ascender in pixels

◆ GetBitmapPlane()

CGUIBitmapPlane & CGfxWrap::GetBitmapPlane ( const GUIBitmapPlaneID_t uiBitmapID )

Accessing the bitmap with the given ID. If the bitmap with the given ID does not exist, a default bitmap with the size of 0/0 will be returned

Parameters

uiBitmapID id of the bitmap

Returns: CGUIBitmapPlane& The bitmap plane

◆ GetBitmapPlaneData()

virtual eC_TArray< eC_UByte > * CGfxWrap::GetBitmapPlaneData ( const GUIBitmapPlaneID_t & eBitmapPlaneID )

virtual

Return data of bitmap-plane in array

Parameters

eBitmapPlaneID id of bitmap-plane

Returns: data

◆ GetCliprect()

virtual void CGfxWrap::GetCliprect ( CGUIRect & AbsClipRect ) const

virtual

Retrieves the currently set clipping rectangle

Parameters

AbsClipRect

◆ GetDescender()

eC_Int CGfxWrap::GetDescender ( ) const

Returns the currently set font's descender-metric. If the descender is not supported by a given Font-Wrapper, this returns 0.

Returns: descender in pixels

◆ GetDoubleBufferingEnforcesFlipping()

eC_Bool CGfxWrap::GetDoubleBufferingEnforcesFlipping ( )

inline

Returns whether the DoubleBufferingEnforcesFlipping-flag has been set.

Returns: The current status of the DoubleBufferingEnforcesFlipping-flag (as set by the user, or marked as default by the chosen graphics wrapper)

◆ GetDummyBitmap()

CGUIBitmapPlane & CGfxWrap::GetDummyBitmap ( )

protected

Accessor for the dummy bitmap with the size 0/0

Returns: reference to the dummy bitmap

◆ GetForegroundColor()

eC_UInt CGfxWrap::GetForegroundColor ( ) const

inline

Gets the current foreground color.

Returns: The foreground color.

◆ GetGlobalAlpha()

eC_UByte CGfxWrap::GetGlobalAlpha ( ) const

inline

Gets the current alpha value.

Returns: The alpha value.

◆ GetGlyphMetrics()

void CGfxWrap::GetGlyphMetrics	(	const eC_Char	cChar,
		CFntWrap::GlyphMetrics_t &	kMetrics
	)

Return glyph-metrics

Parameters

cChar
kMetrics

◆ GetImageSize()

virtual eC_UInt CGfxWrap::GetImageSize ( const ImageResource_t & eID ) const

protectedpure virtual

Computes the size of a loaded image's raw pixel data (e.g. RGBA or RGB565, depending on platform) in memory. Needed for the Image Cache. Since this will be called by the Guiliani Image cache, derived wrappers _must not_ call NotifyImageAccess() from within this method.

Parameters

eID	The image's ID.

Returns: the size of the image in bytes

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapDirectFb, and CGfxWrapVG.

◆ GetImgHeight()

eC_UInt CGfxWrap::GetImgHeight ( const ImageResource_t & eID ) const

Gets the height of an image. This method first checks for validity of the ID, then calls GetImgHeightImpl().

Parameters

eID	Identifier of the image.

Returns: The height of the image in pixels.

◆ GetImgHeightImpl()

virtual eC_UInt CGfxWrap::GetImgHeightImpl ( const ImageResource_t & eID ) const

protectedpure virtual

Returns the height of an image. Must be implemented by each graphics wrapper.

Parameters

eID	The ID of the image whose width should be returned. It is ensured that eID is always in the valid range and not DUMMY_IMAGE.

Returns: The width of the image in pixels.

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrapDirectFb, CGfxWrapNull, and CGfxWrapVG.

◆ GetImgOriginRect()

CGUIRect CGfxWrap::GetImgOriginRect ( const ImageResource_t & eID ) const

inline

Returns the bounding box of the image, placed at the origin (0, 0)

Parameters

eID image-ID

Returns: bounding box

◆ GetImgWidth()

eC_UInt CGfxWrap::GetImgWidth ( const ImageResource_t & eID ) const

Returns the width of an image. This method first checks for validity of the ID, then calls GetImgWidthImpl().

Parameters

eID	Identifier of the image.

Returns: The width of the image in pixels.

◆ GetImgWidthImpl()

virtual eC_UInt CGfxWrap::GetImgWidthImpl ( const ImageResource_t & eID ) const

protectedpure virtual

Returns the width of an image. Must be implemented by each graphics wrapper.

Parameters

eID	The ID of the image whose width should be returned. It is ensured that eID is always in the valid range and not DUMMY_IMAGE.

Returns: The width of the image in pixels.

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrapDirectFb, CGfxWrapNull, and CGfxWrapVG.

◆ GetInternalLeading()

eC_Int CGfxWrap::GetInternalLeading ( ) const

Returns the currently set font's internal leading. If the internal leading is not supported by a given Font-Wrapper, this returns 0.

Returns: internal leading in pixels

◆ GetInvalidatedRect()

const CGUIRect & CGfxWrap::GetInvalidatedRect ( ) const

inline

Returns the current invalidated rectangle

Returns: invalidated rectangle

◆ GetNextPowerOf2()

static eC_UInt CGfxWrap::GetNextPowerOf2 ( const eC_Value & vValue )

inlinestatic

helper method for calculating the next power of two _very_ fast.

Parameters

vValue eC_value for which the next power of two will be calculated

Returns: Returns the closest power-of-two number greater or equal to vValue. If NON_POWER_OF_2_TEXTURES is defined, it will return the rounded up integer value of vValue. Will return 0 when n = 0 and 1 when n = 1.

◆ GetNOFFonts()

eC_UInt CGfxWrap::GetNOFFonts ( )

Gets the number of fonts (array size).

Returns: Number of fonts. If no font wrapper was instantiated, the GUIConfig constant number of font resources is returned which only reflects 'static' resources without taking dynamic fonts into account.

◆ GetNOFImages()

virtual eC_UInt CGfxWrap::GetNOFImages ( )

inlinevirtual

Gets the number of images (array size).

Returns: Number of images.

◆ GetPhysicalScreenHeight()

virtual eC_UInt CGfxWrap::GetPhysicalScreenHeight ( )

pure virtual

Returns the screen height. Will always return the physical screen height with which the GfxWrap was originally initialized. Regardless of whether the virtual screen size has been modified e.g. while drawing into a CGUIBitmapPlane.

Returns: Physical screen height

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ GetPhysicalScreenWidth()

virtual eC_UInt CGfxWrap::GetPhysicalScreenWidth ( )

pure virtual

Returns the screen width. Will always return the physical screen width with which the GfxWrap was originally initialized. Regardless of whether the virtual screen size has been modified e.g. while drawing into a CGUIBitmapPlane.

Returns: Physical screen width

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ GetRenderingOffset()

void CGfxWrap::GetRenderingOffset	(	eC_Value &	vOffsetX,
		eC_Value &	vOffsetY
	)

Return rendering offset

Parameters

vOffsetX
vOffsetY

◆ GetScreenFormat()

CGUICommonEnums::ImageType_t CGfxWrap::GetScreenFormat ( ) const

inline

Returns the pixel-format of the screen (framebuffer)

Returns: screen-format

◆ GetScreenHorizontalPPI()

virtual eC_UInt CGfxWrap::GetScreenHorizontalPPI ( ) const

inlinevirtual

Returns the horizontal pixel size in pixel per inch. 72 per default

Returns: horizontal PPI

◆ GetScreenVerticalPPI()

virtual eC_UInt CGfxWrap::GetScreenVerticalPPI ( ) const

inlinevirtual

Returns the vertical pixel size in pixel per inch. 72 per default

Returns: vertical PPI

◆ GetTextXPosAdjustment()

eC_Value CGfxWrap::GetTextXPosAdjustment ( const CGUIText::HorAligned_t eHorAlignment )

Get the X position adjustment because of platform specific font structure.

Parameters

eHorAlignment The horizontal alignment of GUIText object.

Returns: The x position adjustment. The GUItext object should add this adjustment to get the correct position.

◆ GetTextYPosAdjustment()

eC_Value CGfxWrap::GetTextYPosAdjustment ( const CGUIText::VerAligned_t eVerAlignment )

Get the Y position adjustment because of platform specific font structure.

Parameters

eVerAlignment The vertical alignment of GUIText object.

Returns: The y position adjustment. The GUItext object should add this adjustment to get the correct position.

◆ GetUsedBitmapPlaneID()

GUIBitmapPlaneID_t CGfxWrap::GetUsedBitmapPlaneID ( ) const

inline

Accessor for the ID of the currently used Bitmap. 0 if the Wrapper renders directly to the screen.

Returns: ID of the render target bitmap or 0 for the screen

◆ GetVirtualScreenHeight()

virtual eC_UInt CGfxWrap::GetVirtualScreenHeight ( )

pure virtual

Returns the screen height in pixels, may vary if DrawToBitmap is active. It will then return the active BitmapPlane's height instead.

See also: GetPhysicalScreenHeight()

Returns: eC_UInt The screen height

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ GetVirtualScreenWidth()

virtual eC_UInt CGfxWrap::GetVirtualScreenWidth ( )

pure virtual

Returns the screen width in pixels, may vary if DrawToBitmap is active. It will then return the active BitmapPlane's width instead.

See also: GetPhysicalScreenWidth()

Returns: eC_UInt The screen width

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ GetWorkingMemory()

virtual eC_UByte * CGfxWrap::GetWorkingMemory ( const eC_UInt & uiSize )

virtual

Get working memory

Parameters

uiSize size of memory

Returns: memory or NULL if unsuccessful

◆ GetWrapperName()

eC_String CGfxWrap::GetWrapperName ( ) const

inline

Get the name of the currently used wrapper

Returns: wrapper-name

◆ ImageExists()

virtual eC_Bool CGfxWrap::ImageExists ( const ImageResource_t eID ) const

pure virtual

Returns whether the image with the given ID currently is loaded within the Graphics Wrapper. This interface must be implemented by derived graphics wrappers.

Parameters

eID	The ID to check

Returns: True if the image with the given ID is currently loaded, False otherwise.

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapDirectFb, and CGfxWrapVG.

◆ InvalidateRect() [1/2]

void CGfxWrap::InvalidateRect ( const CGUIRect & kInvalidRect )

Invalidates a region of the GUI. All objects overlapping with an invalidated region will be redrawn during the next redraw-cycle. The right edge and the bottom edge of the rectangle is not included in the invalidation. e.g. InvalidateRect(0, 0, 10, 10); will invalidate from (0,0) to (9,9) on the screen (both included). So InvalidateRect(CGUIObject::GetAbsRect()) will invalidate the complete drawing area of the object.

See also: CGUIObject::GetAbsRect().

Parameters

kInvalidRect Rectangular region of the GUI which has to be redrawn

◆ InvalidateRect() [2/2]

void CGfxWrap::InvalidateRect	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2
	)

inline

Invalidates a region of the GUI.

See also: CGfxWrap::InvalidateRect(const CGUIRect &kInvalidRect)

Parameters

vAbsX1	X-Coordinate of region's top left corner
vAbsY1	Y-Coordinate of region's top left corner
vAbsX2	X-Coordinate of region's bottom right corner
vAbsY2	Y-Coordinate of region's bottom right corner

◆ Line() [1/2]

void CGfxWrap::Line ( const CGUIRect & kAbsRect )

Draws a line defined by a CGUIRect

Parameters

kAbsRect CGUIRect containing the line endpoints

See also: CGfxWrap::Line(const eC_Value& vAbsX1, const eC_Value& vAbsY1, const eC_Value& vAbsX2, const eC_Value& vAbsY2)

◆ Line() [2/2]

virtual void CGfxWrap::Line	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2
	)

protectedpure virtual

the following methods are protected to prevent calling them directly

Draws a line from (vAbsX1, vAbsY1) to (vAbsX2, vAbsY2)

Parameters

vAbsX1	X-coordinate of starting point
vAbsY1	Y-Coordinate of starting point
vAbsX2	X-coordinate of ending point
vAbsY2	Y-Coordinate of ending point

Implemented in CGfxWrapBLU, CGfxWrapNull, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, CGfxWrap_stm32f746, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, and CGfxWrapGL.

◆ LoadFont()

void CGfxWrap::LoadFont ( const FontResource_t & eFontID )

Loads a font identified by pcPath into an array of fonts at position eFontID. If the font already exists, it it not loaded again. Should only be called by a GfxWrapper.

Parameters

eFontID id (and hence index) of the font.

◆ LoadGlyphData()

virtual void CGfxWrap::LoadGlyphData	(	CGUIImageData *	pkImageData,
		const eC_UInt &	uiGlyphWidth,
		const eC_UInt &	uiGlyphHeight,
		eC_UByte *	pkGlyphBitmap
	)

virtual

load data for glyph

Parameters

pkImageData	image-data to modify
uiGlyphWidth	width of glyph
uiGlyphHeight	height of glyph
pkGlyphBitmap	bitmap of glyph

Reimplemented in CGfxWrapDAVE, and CGfxWrapDAVEHD.

◆ LoadImg() [1/2]

void CGfxWrap::LoadImg	(	const eC_String &	kPath,
		const ImageResource_t &	eID
	)

protected

Loads an image. This loads an image from the given path and associates it with an Image-Identifier. This calls the LoadImgImpl() method internally, which has to be implemented by every GfxWrapper.

Parameters

kPath	Complete path and filename of the image to be loaded.
eID	ID by which the image will later be accessible.

◆ LoadImg() [2/2]

void CGfxWrap::LoadImg	(	void *	pkMemory,
		const eC_UInt &	uiWidth,
		const eC_UInt &	uiHeight,
		const eC_UInt &	eImageType,
		const ImageResource_t &	eID
	)

protected

Loads an image. This loads an image which resides in the memory with a given size and format and associates it with an Image-Identifier. This calls the LoadImgImpl() method internally, which has to be implemented by every GfxWrapper.

Parameters

pkMemory
uiWidth
uiHeight
eImageType
eID	ID by which the image will later be accessible.

◆ LoadImgImpl() [1/2]

virtual void CGfxWrap::LoadImgImpl	(	const eC_String &	kPath,
		const ImageResource_t &	eID
	)

protectedpure virtual

Loads an image. This loads an image from the given path and associates it with an Image-Identifier.

Parameters

kPath	Complete path and filename of the image to be loaded.
eID	ID by which the image will later be accessible.

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapDirectFb, CGfxWrapNull, CGfxWrapVG, CGfxWrapeGML, and CGfxWrapGL.

◆ LoadImgImpl() [2/2]

virtual void CGfxWrap::LoadImgImpl	(	void *	pkMemory,
		const eC_UInt &	uiWidth,
		const eC_UInt &	uiHeight,
		const eC_UInt &	eImageType,
		const ImageResource_t &	eID
	)

protectedpure virtual

Loads a memory-image. This loads an image from a pointer and associates it with an Image-Identifier.

Parameters

pkMemory	pointer to image-data.
uiWidth
uiHeight
eImageType
eID	ID by which the image will later be accessible.

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, and CGfxWrapNull.

◆ Rect() [1/2]

void CGfxWrap::Rect ( const CGUIRect & kAbsRect )

Draws a rectangle defined by a CGUIRect

Parameters

kAbsRect CGUIRect containing the rectangle corners' endpoints

See also: CGfxWrap::Rect(const eC_Value& vAbsX1, const eC_Value& vAbsY1, const eC_Value& vAbsX2, const eC_Value& vAbsY2)

◆ Rect() [2/2]

virtual void CGfxWrap::Rect	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2
	)

protectedpure virtual

Draws a rectangle with the top left edge at (vAbsX1, vAbsY1) and bottom right edge at (vAbsX2, vAbsY2). The bottom edge and the right edge is not included in the drawn rect. e.g. Rect(0, 0, 10, 10); the rect is drawn from (0,0) to (9,9) (both included).

See also: CGUIObject::GetAbsRect()

Parameters

vAbsX1	X-coordinate of top left corner
vAbsY1	Y-Coordinate of top left corner
vAbsX2	X-coordinate of bottom right corner
vAbsY2	Y-Coordinate of bottom right corner

Implemented in CGfxWrapBLU, CGfxWrapNull, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, CGfxWrap_stm32f746, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, and CGfxWrapGL.

◆ RedrawGUI()

virtual void CGfxWrap::RedrawGUI ( )

virtual

Redraw the invalidated regions of the screen and refresh the visible display of the GUI. This method is declared virtual so that you may implement specialized behaviour in derived classes, for example if you are using a graphics engine which forces you to flip the front and back buffers and you are thus required to disable the Invalidated-rectangles approach.

◆ Refresh()

virtual eC_Bool CGfxWrap::Refresh ( const RefreshCall_t eRefreshCallType )

protectedpure virtual

Method to bring the screen content onto the physical screen so that it becomes visible, usually via a blit operation.

Parameters

eRefreshCallType The call type of this refresh

Returns: True of the refresh was performed, False otherwise

Implemented in CGfxWrapBLU, CGfxWrapDAVECyclone5, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapOGL, CGfxWrapOGLES, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, and CGfxWrap_stm32f746.

◆ RefreshImage()

virtual void CGfxWrap::RefreshImage	(	const ImageResource_t &	eID,
		void *	pkMemory
	)

inlineprotectedvirtual

Refresh a memory-image

Parameters

eID	ID of image to refresh
pkMemory	memory-location

Reimplemented in CGfxWrapDAVE, and CGfxWrapDAVEHD.

◆ ReleaseWorkingMemory()

virtual void CGfxWrap::ReleaseWorkingMemory ( eC_UByte * pkMemory )

virtual

Release working memory

Parameters

pkMemory

◆ RequiredSpace()

void CGfxWrap::RequiredSpace	(	const eC_String *const	pkText,
		eC_Value &	vWidth,
		eC_Value &	vHeight
	)

Calculates the required space in x- and y-direction for a given text-string using the currently set font.

Parameters

pkText	The text.
vWidth	Reference to width of the font in pixels.
vHeight	Reference to height of the font in pixels.

◆ ResetWorkingMemory()

virtual void CGfxWrap::ResetWorkingMemory ( )

virtual

Reset working memory. This should be called after refresh.

◆ RestoreWrapperState()

virtual void CGfxWrap::RestoreWrapperState ( )

inlinevirtual

Restores a previously saved state for the Graphics-Wrapper. Any change in the underlying API will be purged.

Reimplemented in CGfxWrapGL.

◆ Ring() [1/2]

void CGfxWrap::Ring	(	const CGUIRect &	kAbsRect,
		const eC_Value &	vRingWidth,
		const eC_Value &	vStartAngle,
		const eC_Value &	vEndAngle,
		const eC_Value &	vRotationAngle,
		const eC_Bool &	bFilled
	)

Draws a ring arc defined by a CGUIRect

See also: CGfxWrap::Arc(const eC_Value& vX1, const eC_Value& vY1, const eC_Value& vX2, const eC_Value& vY2, const eC_Value& vStartAngle, const eC_Value& vEndAngle, const eC_Value& vRotationAngle, const eC_Bool &bFilled)

Parameters

kAbsRect	CGUIRect containing the rectangle corners' endpoints
vRingWidth	width of the ring
vStartAngle	start-angle of the arc
vEndAngle	end-angle of the arc
vRotationAngle	rotation-angle
bFilled	Specifies whether the arc will be drawn outlined (false) or filled (true)

◆ Ring() [2/2]

virtual void CGfxWrap::Ring	(	const eC_Value &	vX1,
		const eC_Value &	vY1,
		const eC_Value &	vX2,
		const eC_Value &	vY2,
		const eC_Value &	vRingWidth,
		const eC_Value &	vStartAngle,
		const eC_Value &	vEndAngle,
		const eC_Value &	vRotationAngle,
		const eC_Bool &	bFilled
	)

protectedpure virtual

Draws a ring which is completly inside the rectangle described through the rectangle the top left edge at (vAbsX1, vAbsY1) and bottom right edge at (vAbsX2, vAbsY2). The ring will be filled out if the last parameter is true 0-degrees is at the mathematically correct position on the unit-circle angles are increasing in counter-clockwise direction. rotation-angle is increasing in clockwise direction, i.e. rotating by 90 degrees will result in the 0-degress being at the bottom-center

Parameters

vX1	X-coordinate of bounding rectangle's top left corner
vY1	Y-Coordinate of bounding rectangle's top left corner
vX2	X-coordinate of bounding rectangle's bottom right corner
vY2	Y-Coordinate of bounding rectangle's bottom right corner
vRingWidth	width of the ring
vStartAngle	start-angle
vEndAngle	end-angle
vRotationAngle	rotation-angle
bFilled	Specifies whether the ring will be drawn outlined (false) or filled (true)

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrapVG, and CGfxWrapNull.

◆ SetCliprect()

virtual void CGfxWrap::SetCliprect ( const CGUIRect & NewAbsClipRect )

pure virtual

Sets a clipping rectangle. All drawing operations will be limited to the region within the clipping rectangle. This is very useful for advanced features such as soft-scrolling. Note that the clipping rectangle is not allowed to exceed the invalidated rectangle, since this would lead to visual artifacts.

Parameters

NewAbsClipRect A normalised rectangle that includes all pixels that could be drawn by the functions of the graphics wrapper. The rectangle includes the border. All pixels outside will be left untouched.

Implemented in CGfxWrapeGML, CGfxWrapNull, CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapDirectFb, CGfxWrap_stm32f429, CGfxWrap_stm32f746, CGfxWrapGL, and CGfxWrapVG.

◆ SetDoubleBufferingEnforcesFlipping()

void CGfxWrap::SetDoubleBufferingEnforcesFlipping ( const eC_Bool bDoubleBufferingEnforcesFlipping )

inline

Tell Guiliani that the underlying graphics API enforces flipping the back and front buffers (Instead of copying from the back to the front buffer).

Parameters

bDoubleBufferingEnforcesFlipping Set to True if flipping of buffers leads to visual artifacts

◆ SetFilteredBlit()

virtual void CGfxWrap::SetFilteredBlit ( const eC_Bool & bFilteredBlit )

inlinevirtual

Set filtered blit

Parameters

bFilteredBlit

Reimplemented in CGfxWrapeGML.

◆ SetFont()

void CGfxWrap::SetFont ( const FontResource_t & eID )

Sets the supplied font active. All subsequent text operations will use this font,

Parameters

eID	id of the font.

◆ SetFontSpacing()

void CGfxWrap::SetFontSpacing ( const eC_Float & fSpacing )

Sets a new font spacing, i.e the space between letters.

Parameters

fSpacing New font spacing.

◆ SetForegroundColor() [1/2]

void CGfxWrap::SetForegroundColor	(	const eC_UByte &	ubRed,
		const eC_UByte &	ubGreen,
		const eC_UByte &	ubBlue,
		const eC_UByte &	ubAlpha = `255`
	)

inline

Sets the foreground color via red, green, blue and alpha values

Parameters

ubRed	Red intensity within a range of 0 - 255
ubGreen	Green intensity within a range of 0 - 255
ubBlue	Blue intensity within a range of 0 - 255
ubAlpha	Alpha intensity within a range of 0 (transparent) - 255 (opaque)

◆ SetForegroundColor() [2/2]

void CGfxWrap::SetForegroundColor ( const eC_UInt & uiCol )

inline

Sets the foreground color via a 32 Bit value in the Format 0xAARRGGBB Example Values: 0xFFFF0000 = Red (fully opaque) 0x77FFFFFF = White (semi transparent)

Parameters

uiCol 32Bit Color value in the Format 0xAARRGGBB

◆ SetForegroundColorImpl()

virtual void CGfxWrap::SetForegroundColorImpl	(	const eC_UByte &	ubRed,
		const eC_UByte &	ubGreen,
		const eC_UByte &	ubBlue,
		const eC_UByte &	ubAlpha = `255`
	)

protectedpure virtual

Sets the foreground color. This MUST be implemented by all graphics wrappers. For detailed explanations, please refer to CGfxWrap::SetForegroundColor

Parameters

ubRed	Red intensity within a range of 0 - 255
ubGreen	Green intensity within a range of 0 - 255
ubBlue	Blue intensity within a range of 0 - 255
ubAlpha	Alpha intensity within a range of 0 (transparent) - 255 (opaque)

Implemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, CGfxWrapDirectFb, CGfxWrap_stm32f429, and CGfxWrap_stm32f746.

◆ SetGfxEnv()

void CGfxWrap::SetGfxEnv ( CGfxEnv * pkGfxEnv )

Set the attached graphics-environment, if any

Parameters

pkGfxEnv

◆ SetGlobalAlpha()

void CGfxWrap::SetGlobalAlpha ( const eC_UByte & ubAlpha )

inline

Sets the global alpha via an unsigned Byte. In contrast to UpdateGlobalAlpha, this will NOT blend subsequent alphas

See also: UpdateGlobalAlpha

Parameters

ubAlpha unsigned Byte

◆ SetInvalidatedRect() [1/2]

void CGfxWrap::SetInvalidatedRect ( const CGUIRect & NewAbsRect )

inlineprotected

Sets the current invalidated (dirty) rectangle. This marks the region which has to be redrawn during the next call to Refresh()

Parameters

NewAbsRect Structure of type CGUIRect, specifying the new invalidated rectangle's extends.

◆ SetInvalidatedRect() [2/2]

void CGfxWrap::SetInvalidatedRect	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_Value &	vAbsX2,
		const eC_Value &	vAbsY2
	)

protected

Sets the current invalidated (dirty) rectangle. This marks the region which has to be redrawn during the next call to Refresh()

Parameters

vAbsX1	X-Coordinate of top left corner
vAbsY1	Y-Coordinate of top left corner
vAbsX2	X-Coordinate of bottom right corner
vAbsY2	Y-Coordinate of bottom right corner

◆ SetLineWidth()

virtual eC_Value CGfxWrap::SetLineWidth ( const eC_Value & vWidth )

virtual

Sets the line width in pixels

Parameters

vWidth width of lines

Returns: The previous line width.

Reimplemented in CGfxWrapDAVE, CGfxWrapeGML, CGfxWrapGL, and CGfxWrapVG.

◆ SetNOFFonts()

eC_Bool CGfxWrap::SetNOFFonts ( const eC_UInt uiNOFFonts )

Sets the total number of fonts. This is called internally by the ResourceManager when dynamically allocated font resources require the total number of fonts to be raised. the Font-Wrapper classes have to implement this method and resize their internal image-storage structures according to the new number of fonts which will have to be stored.

Parameters

uiNOFFonts The number of fonts

Returns: True if internal storage has been successfully adapted to support the requested number of fonts. False otherwise.

◆ SetNOFImages()

eC_Bool CGfxWrap::SetNOFImages ( const eC_UInt uiNOFImages )

inlineprotected

Sets the total number of images. This is called internally by the ResourceManager when dynamically allocated image resources require the total number of images to be raised. This calls the SetNOFImagesImpl() method internally, which should be implemented in derived GfxWrappers.

Parameters

uiNOFImages The number of images

Returns: True if internal storage has been successfully adapted to support the requested number of images. False otherwise.

◆ SetNOFImagesImpl()

virtual eC_Bool CGfxWrap::SetNOFImagesImpl ( const eC_UInt uiNOFImages )

protectedvirtual

Sets the total number of images. This is called internally by the ResourceManager when dynamically allocated image resources require the total number of images to be raised. Derived classes will have to override this method and resize their internal image-storage structures according to the new number of images which will have to be stored.

Parameters

uiNOFImages The number of images

Returns: True if internal storage has been successfully adapted to support the requested number of images. False otherwise.

Reimplemented in CGfxWrapBLU, CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapNull, CGfxWrapGL, CGfxWrapVG, and CGfxWrapDirectFb.

◆ SetOptimizedBlit()

virtual void CGfxWrap::SetOptimizedBlit ( const eC_Bool & bOptimizedBlit )

inlinevirtual

Set optimized blit

Parameters

bOptimizedBlit

Reimplemented in CGfxWrapeGML.

◆ SetRenderingOffset()

virtual void CGfxWrap::SetRenderingOffset	(	const eC_Value &	vOffsetX,
		const eC_Value &	vOffsetY
	)

virtual

Set offset for rendering

Parameters

vOffsetX
vOffsetY

◆ SetScreenFormat()

void CGfxWrap::SetScreenFormat ( const CGUICommonEnums::ImageType_t & uiScreenFormat )

inline

Set the currently active screen-format

Parameters

uiScreenFormat

◆ SetScreenSize()

virtual void CGfxWrap::SetScreenSize	(	const eC_UInt &	uiWidth,
		const eC_UInt &	uiHeight
	)

virtual

Sets the new physical screen size.

Parameters

uiWidth	New screen width.
uiHeight	New screen height.

Reimplemented in CGfxWrapGL.

◆ SetTargetLayer()

virtual void CGfxWrap::SetTargetLayer ( const eC_UInt & uiLayerID )

inlinevirtual

Set target-layer for rendering

Parameters

uiLayerID

Reimplemented in CGfxWrapDAVE, CGfxWrapDAVEHD, and CGfxWrapeGML.

◆ SetWindowCaption()

virtual void CGfxWrap::SetWindowCaption ( const eC_String & kText )

virtual

Sets the window-caption if available

Parameters

kText text to set

◆ StartHandleDraw()

virtual void CGfxWrap::StartHandleDraw ( const CGUIRect & crkClipRect )

protectedvirtual

Called for every single InvalidatedRect() during RedrawGUI(). Also serves as proxy function to make GETGUI.HandleDraw() accessible from derived graphics wrappers. Make sure to call CGfxWrap::StartHandleDraw() when overriding this function.

Parameters

crkClipRect Rectangle against which this cycle of handle draw calls will be clipped.

Reimplemented in CGfxWrapBLU.

◆ StartRedrawGUI()

virtual void CGfxWrap::StartRedrawGUI ( )

inlineprotectedvirtual

Callback which is called at the beginning of RedrawGUI() Note that this function as well as EndRedrawGUI() will also get called if the list of invalidated rects is empty. Check m_kInvalidatedRectList if you need more details on the number and dimensions of invalidated areas.

Reimplemented in CGfxWrapDAVEHD.

◆ StoreWrapperState()

virtual void CGfxWrap::StoreWrapperState ( )

inlinevirtual

Saves the current active state of the Graphics-Wrapper. This might be used to manipulate the underlying API (e.g. OpenGL) without interfering with Guiliani-internal state.

Reimplemented in CGfxWrapGL.

◆ SupportCompressedFonts()

virtual eC_Bool CGfxWrap::SupportCompressedFonts ( ) const

inlinevirtual

Return if gfxwrap supports compressed fonts other than Alpha8

Returns: true if supported

Reimplemented in CGfxWrapBLU, CGfxWrapDAVE, and CGfxWrapDAVEHD.

◆ SyncWorkingMemory()

virtual void CGfxWrap::SyncWorkingMemory ( )

virtual

Synchronize working memory

◆ Text()

void CGfxWrap::Text	(	const eC_Value &	vAbsX1,
		const eC_Value &	vAbsY1,
		const eC_String *const	lpString
	)

Draws the given Text at (vAbsX1, vAbsY1)

Parameters

vAbsX1	X-position where the Text will be drawn
vAbsY1	Y-position where the Text will be drawn
lpString	Text to output

◆ UnloadFont()

void CGfxWrap::UnloadFont ( const FontResource_t & eFontID )

Removes the font from the font list. Should only be called by a GfxWrapper.

Parameters

eFontID Id of font to be removed.

◆ UnloadGlyphData()

virtual void CGfxWrap::UnloadGlyphData ( CGUIImageData * pkImageData )

virtual

Unload data for glyph

Parameters

pkImageData image-data to unload

Reimplemented in CGfxWrapDAVE, and CGfxWrapDAVEHD.

◆ UnloadImg()

virtual void CGfxWrap::UnloadImg ( const ImageResource_t & eID )

inlineprotectedvirtual

Unloads an image. Unloads the image associated with the supplied Image-identifier and frees the memory formerly occupied by this image.

Parameters

eID	Identifier of the image to be unloaded.

Reimplemented in CGfxWrapDAVE, CGfxWrapDAVEHD, CGfxWrapeGML, CGfxWrapGL, CGfxWrapBLU, CGfxWrapNull, and CGfxWrapVG.

◆ UpdateGlobalAlpha()

void CGfxWrap::UpdateGlobalAlpha ( const eC_UByte & ubAlpha )

inline

Updates the global alpha via an unsigned Byte The global alpha value will affect all drawing operations. Subsequent calls to UpdateGlobalAlpha will blend the new alpha value with the formerly set one.

See also: SetGlobalAlpha

Parameters

ubAlpha unsigned Byte

Friends And Related Function Documentation

◆ CFntWrap

friend class CFntWrap

friend

◆ CGUI

friend class CGUI

friend

◆ CGUIBackgroundImageLoaderThread

friend class CGUIBackgroundImageLoaderThread

friend

◆ CGUIComponentManager

friend class CGUIComponentManager

friend

◆ CGUIImageCacheImpl

friend class CGUIImageCacheImpl

friend

◆ CGUIResourceManager

friend class CGUIResourceManager

friend

Member Data Documentation

◆ m_bDoubleBufferingEnforcesFlipping

eC_Bool CGfxWrap::m_bDoubleBufferingEnforcesFlipping

protected

Guiliani's smart redraw mechanism requires that the back buffer gets COPIED to the front buffer and NOT FLIPPED If the underlying graphics API enforces flipping, though, you can set the m_bDoubleBufferingEnforcesFlipping flag and Guiliani will react accordingly.

◆ m_bInvalidationInLastFrame

eC_Bool CGfxWrap::m_bInvalidationInLastFrame

protected

Indicates whether HandleDraw() was called in last frame. In this case we need a refresh if we use double buffering (to switch buffers) even if there were no changes in this frame.

◆ m_kClippingRect

CGUIRect CGfxWrap::m_kClippingRect

protected

The current clipping rect. Note that this will usually have to be set within the used graphics library as well.

◆ m_kInvalidatedRect

CGUIRect CGfxWrap::m_kInvalidatedRect

protected

This rectangle marks the region of the screen, which is currently being redrawn. During a redraw of the GUI, this will be assigned every rectangle within m_kInvalidetedRectList

◆ m_vGlobalAlphaFactor

eC_Value CGfxWrap::m_vGlobalAlphaFactor

protected

Current scaling factor for global alpha Used as a helper variable when scaling concatenated alpha operations.

The documentation for this class was generated from the following file:

GfxWrap.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Bitmap Planes

Detailed Description

Member Enumeration Documentation

◆ RefreshCall_t

Member Function Documentation

◆ ApplyGlobalAlpha()

◆ Arc() [1/2]

◆ Arc() [2/2]

◆ BlitImg() [1/2]

◆ BlitImg() [2/2]

◆ BlitImgExt() [1/4]

◆ BlitImgExt() [2/4]

◆ BlitImgExt() [3/4]

◆ BlitImgExt() [4/4]

◆ BlitImgExtImpl() [1/2]

◆ BlitImgExtImpl() [2/2]

◆ BlitImgNinePatch() [1/2]

◆ BlitImgNinePatch() [2/2]

◆ ChangeFont()

◆ ClearInvalidRect()

◆ CreateBitmapPlane()

◆ CreateGfxDependentBitmap()

◆ DeleteBitmapPlane()

◆ DeleteBitmapPlanes()

◆ DestroyScreen()

◆ DrawToBitmap()

◆ DrawToScreen()

◆ Ellipse() [1/2]

◆ Ellipse() [2/2]

◆ FilledRect() [1/2]

◆ FilledRect() [2/2]

◆ FinishDrawToBitmap()

◆ FittingNumChars()

◆ ForceRefresh()

◆ GetAscender()

◆ GetBitmapPlane()

◆ GetBitmapPlaneData()

◆ GetCliprect()

◆ GetDescender()

◆ GetDoubleBufferingEnforcesFlipping()

◆ GetDummyBitmap()

◆ GetForegroundColor()

◆ GetGlobalAlpha()

◆ GetGlyphMetrics()

◆ GetImageSize()

◆ GetImgHeight()

◆ GetImgHeightImpl()

◆ GetImgOriginRect()

◆ GetImgWidth()

◆ GetImgWidthImpl()

◆ GetInternalLeading()

◆ GetInvalidatedRect()

◆ GetNextPowerOf2()

◆ GetNOFFonts()

◆ GetNOFImages()

◆ GetPhysicalScreenHeight()

◆ GetPhysicalScreenWidth()

◆ GetRenderingOffset()

◆ GetScreenFormat()

◆ GetScreenHorizontalPPI()

◆ GetScreenVerticalPPI()

◆ GetTextXPosAdjustment()

◆ GetTextYPosAdjustment()

◆ GetUsedBitmapPlaneID()

◆ GetVirtualScreenHeight()

◆ GetVirtualScreenWidth()

◆ GetWorkingMemory()

◆ GetWrapperName()

◆ ImageExists()

◆ InvalidateRect() [1/2]

◆ InvalidateRect() [2/2]

◆ Line() [1/2]

◆ Line() [2/2]
