CGUINinePatch Class Reference

Helper class to for storing Nine-Patch images. More...

#include <GUINinePatch.h>

Public Member Functions
	CGUINinePatch ()
	CGUINinePatch (const eC_UInt &uiTop, const eC_UInt &uiBottom, const eC_UInt &uiLeft, const eC_UInt &uiRight)
void	Assign (const CGUINinePatch &kOther)
void	Assign (const eC_UInt &uiTop, const eC_UInt &uiBottom, const eC_UInt &uiLeft, const eC_UInt &uiRight)
eC_UInt	GetBottom () const
eC_UInt	GetLeft () const
eC_UInt	GetRight () const
eC_UInt	GetTop () const
void	ReadFromStream ()
void	WriteToStream ()

Protected Attributes
eC_UInt	m_uiBottomBorder
	Nine Patch Bottom Border size in pixels.
eC_UInt	m_uiLeftBorder
	Nine Patch Left Border size in pixels.
eC_UInt	m_uiRightBorder
	Nine Patch Right Border size in pixels.
eC_UInt	m_uiTopBorder
	Nine Patch Top Border size in pixels.

Detailed Description

Helper class to for storing Nine-Patch images.

A Nine Patch is a smart way of scaling up bitmaps without the usual quality losses by subdividing the source image into nine sections and blitting the border sections unstretched, while only stretching the center section. This is particularly useful for mostly rectangular images in use-cases such as a scaled button, a progressbar or a scrollbar knob.

The Nine Patch is defined by the width/height of its top, bottom, left and right borders. These are given in pixels and relative to the image's top/left, and bottom/right corners. Typically, you will wish to set these values so that they encapsulate the areas of your source-image which shall remain in their original size, such as the edges or drop shadows of a button. The following image illustrates this concept.

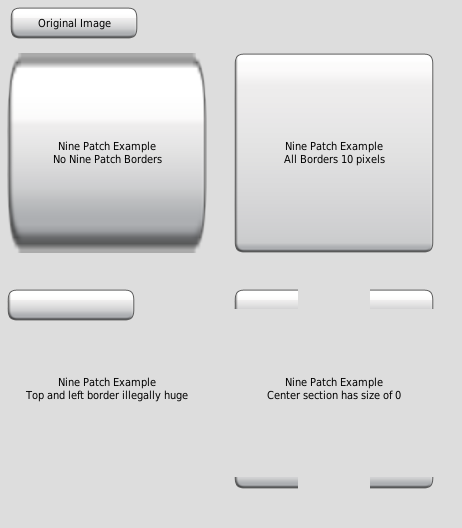

These examples show how the original image appears when being stretched, with regard to different Nine Patch borders. You can clearly see how much the appearance of the stretched button has improved.

Please note that this comes at a slight performance cost, since a total of 9 blit operations has to be performed. Therefore, if you wish to avoid this, either blit the source image in its original size, or set all border widths to zero, which will result in one simple stretch-blit for the entire image.

Supplying the Nine Patch with illegal values, such as border sizes which exceed the original image's dimensions, will result in a visual output as shown in the two examples at the bottom. Also, make sure, that you leave a center section of at least 1 pixel, so that the center area will be filled and not remain empty.

Constructor & Destructor Documentation

CGUINinePatch() [1/2]

CGUINinePatch::CGUINinePatch

(

)

Standard constructor. Initializes all Borders with 0.

CGUINinePatch() [2/2]

CGUINinePatch::CGUINinePatch	(	const eC_UInt &	uiTop,
		const eC_UInt &	uiBottom,
		const eC_UInt &	uiLeft,
		const eC_UInt &	uiRight
	)

Constructor.

Parameters

uiTop	Width of top border in pixels
uiBottom	Width of uiBottom border in pixels
uiLeft	Width of uiLeft border in pixels
uiRight	Width of uiRight border in pixels

Member Function Documentation

Assign() [1/2]

void CGUINinePatch::Assign ( const CGUINinePatch &  kOther )

inline

Assign from other NinePatch

Parameters

kOther

the other ninepatch

Assign() [2/2]

void CGUINinePatch::Assign ( const eC_UInt &  uiTop, const eC_UInt &  uiBottom, const eC_UInt &  uiLeft, const eC_UInt &  uiRight  )

inline

Assign values for all four borders to this Nine Patch.

Parameters

uiTop	Width of top border in pixels
uiBottom	Width of uiBottom border in pixels
uiLeft	Width of uiLeft border in pixels
uiRight	Width of uiRight border in pixels

GetBottom()

eC_UInt CGUINinePatch::GetBottom ( ) const

inline

Returns

The current bottom border in pixels

GetLeft()

eC_UInt CGUINinePatch::GetLeft ( ) const

inline

Returns

The current left border in pixels

GetRight()

eC_UInt CGUINinePatch::GetRight ( ) const

inline

Returns

The current right border in pixels

GetTop()

eC_UInt CGUINinePatch::GetTop ( ) const

inline

Returns

The current top border in pixels

ReadFromStream()

void CGUINinePatch::ReadFromStream

(

)

Please refer to the description of classes using this class, i.e. CGUIButton.

See also

CGUIFactory, CGUIButton::ReadFromStream().

WriteToStream()

void CGUINinePatch::WriteToStream

(

)

Please refer to the description of classes using this class, i.e. CGUIButton.

See also

CGUIStreamWriter, CGUIButton::WriteToStream().

---

The documentation for this class was generated from the following file:

• GUINinePatch.h
