The bitmap plane base class. More...

#include <GUIBitmapPlane.h>

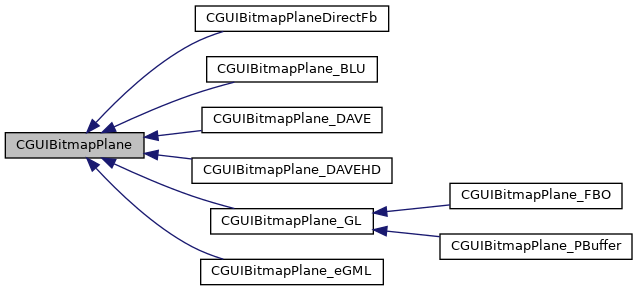

Inheritance diagram for CGUIBitmapPlane:

[legend]

Public Member Functions
GUIBitmapPlaneID_t	GetID () const

2D positioning
void	SetPos2D (eC_Value vXPos, eC_Value vYPos)

void	SetXPos2D (eC_Value vXPos)

void	SetYPos2D (eC_Value vYPos)

eC_Value	GetXPos2D () const

eC_Value	GetYPos2D () const

3D positioning
void	SetPos3D (eC_Value vXPos, eC_Value vYPos, eC_Value vZPos)

void	SetXPos3D (const eC_Value vXPos)

void	SetYPos3D (const eC_Value vYPos)

void	SetZPos3D (const eC_Value vZPos)

eC_Value	GetXPos () const

eC_Value	GetYPos () const

eC_Value	GetZPos () const

Rotation
void	RotateX (const eC_Value vXAngle)

void	RotateY (const eC_Value vYAngle)

void	RotateZ (const eC_Value vZAngle)

eC_Value	GetXAngle () const

eC_Value	GetYAngle () const

eC_Value	GetZAngle () const

void	ResetRotation ()

Size
virtual void	SetWidth (eC_Value vWidth, eC_Bool bExpandCentered=false)

eC_Value	GetWidth () const

eC_Value	GetWidthCorrected () const

virtual void	SetHeight (eC_Value vHeight, eC_Bool bExpandCentered=false)

eC_Value	GetHeight () const

eC_Value	GetHeightCorrected () const

void	SetBytesPerPixel (const eC_UByte &ubBPP)

eC_UByte	GetBytesPerPixel () const

void	SetFormat (const CGUICommonEnums::ImageType_t &eFormat)

CGUICommonEnums::ImageType_t	GetFormat () const

void	SetAutoScale (const eC_Bool bAutoScale)

Drawing
virtual void	DoDraw ()

virtual void	GetData (eC_TArray< eC_UByte > *pkData)

virtual void	Clear (const eC_UByte ubRed=0, const eC_UByte ubGreen=0, const eC_UByte ubBlue=0, const eC_UByte ubAlpha=0)

const CGUIObject &	GetParentGUIObject () const

virtual void	SetAlphaValues (const eC_UByte ubTopLeft, const eC_UByte ubBottomLeft, const eC_UByte ubBottomRight, const eC_UByte ubTopRight)

void	SetAlphaValue (const eC_UByte ubAlpha)

Texturing Top Left
virtual void	SetTopLeftU (eC_Value vU)

virtual eC_Value	GetTopLeftU ()

virtual void	SetTopLeftV (eC_Value vV)

virtual eC_Value	GetTopLeftV ()

void	SetTopLeftUV (eC_Value vU, eC_Value vV)

Texturing Bottom Left
virtual void	SetBottomLeftU (eC_Value vU)

virtual eC_Value	GetBottomLeftU ()

virtual void	SetBottomLeftV (eC_Value vV)

virtual eC_Value	GetBottomLeftV ()

void	SetBottomLeftUV (eC_Value vU, eC_Value vV)

Texturing Bottom Right
virtual void	SetBottomRightU (eC_Value vU)

virtual eC_Value	GetBottomRightU ()

virtual void	SetBottomRightV (eC_Value vV)

virtual eC_Value	GetBottomRightV ()

void	SetBottomRightUV (eC_Value vU, eC_Value vV)

Texturing Top Right
virtual void	SetTopRightU (eC_Value vU)

virtual eC_Value	GetTopRightU ()

virtual void	SetTopRightV (eC_Value vV)

virtual eC_Value	GetTopRightV ()

void	SetTopRightUV (eC_Value vU, eC_Value vV)

Projection
void	EnableDepthTest ()

void	DisableDepthTest ()

eC_Bool	IsDepthTestEnabled () const

virtual eC_Value	Get2DPlaneDistance ()

eC_Value	GetFOV () const

void	SetFOV (const eC_Value vFOV)

eC_Value	GetNear () const

eC_Value	GetFar () const

eC_Bool	IsYFlipped () const

Protected Member Functions
	CGUIBitmapPlane (GUIBitmapPlaneID_t uiNewBitmapID, const CGUIObject &rkParentObject, eC_Value vWidth=0, eC_Value vHeight=0)

eC_Value	GetCenterOfProjectionAbsX () const

eC_Value	GetCenterOfProjectionAbsY () const

void	SetTexUsed (eC_Value vNewTexUsedU, eC_Value vNewTexUsedV)

Avtivation/Deactivation
virtual eC_Bool	FinishDrawToBitmap ()

virtual eC_Bool	DrawToBitmap ()

virtual eC_Bool	DrawToScreen ()

Protected Attributes
eC_TArray< eC_Value >	m_avUVValues
	array containing the uv values for all four plane corners

eC_Bool	m_bAutoScale
	flag describing a bitmap plane will be automatically be scaled on GUIObject scale

eC_Bool	m_bYFlipped
	if data is upside down

eC_UInt	m_uiScreenHeight
	screen height, used to identify screen changes on calculation of 2DPlaneDistance

eC_UInt	m_uiScreenWidth
	screen width, used to identify screen changes on calculation of 2DPlaneDistance

eC_Value	m_v2DPlaneDistance
	2DPlaneDistance

eC_Value	m_vGUIObjectInitHeight
	Height of the GUIObject at creation time of this BitmapPlane.

eC_Value	m_vGUIObjectInitWidth
	Width of the GUIObject at creation time of this BitmapPlane.

eC_Value	m_vTexUsedU
	Used space/unused space in x direction in the Bitmap, due to Power of two limitations [0 1].

eC_Value	m_vTexUsedV
	Used space/unused space in y direction in the Bitmap, due to Power of two limitations [0 1].

Friends
class	CGfxWrap

Detailed Description

The bitmap plane base class.

This class defines the standard interface for every BitmapPlane.

Constructor & Destructor Documentation

◆ CGUIBitmapPlane()

CGUIBitmapPlane::CGUIBitmapPlane	(	GUIBitmapPlaneID_t	uiNewBitmapID,
		const CGUIObject &	rkParentObject,
		eC_Value	vWidth = `0`,
		eC_Value	vHeight = `0`
	)

protected

only the derived classes and GfxWrapper are allowed to create or destroy BitmapPlanes.

Parameters

uiNewBitmapID	id of the newly generated bitmap-plane
rkParentObject	parent-object
vWidth	width
vHeight	height

Member Function Documentation

◆ Clear()

virtual void CGUIBitmapPlane::Clear	(	const eC_UByte	ubRed = `0`,
		const eC_UByte	ubGreen = `0`,
		const eC_UByte	ubBlue = `0`,
		const eC_UByte	ubAlpha = `0`
	)

inlinevirtual

Clears this bitmap with the given color. Attention: Please note that clearing Alpha values is unfortunately not supported by all Graphics APIs!

Parameters

ubRed	is the red part of the clear color
ubGreen	is the green part of the clear color
ubBlue	is the blue part of the clear color
ubAlpha	is the alpha part of the clear color

Reimplemented in CGUIBitmapPlane_BLU, CGUIBitmapPlane_DAVE, CGUIBitmapPlane_DAVEHD, CGUIBitmapPlane_eGML, CGUIBitmapPlane_GL, and CGUIBitmapPlaneDirectFb.

◆ DisableDepthTest()

void CGUIBitmapPlane::DisableDepthTest ( )

inline

Disables the DepthTest for this Plane. If DepthCorrection is disabled the BitmapPlane will always be visible if the parent object is visible. The Z Position of the Plane is ignored for visibility check. DepthTest is not supported on all Graphics Wrappers.

See also: DisableDepthTest()

◆ DoDraw()

virtual void CGUIBitmapPlane::DoDraw ( )

virtual

Draws this BitmapPlane. The Bitmap will be drawn to the current RenderTarget, with the set rotation and position. The set cliprect also applies to this drawing.

Reimplemented in CGUIBitmapPlane_BLU, CGUIBitmapPlane_DAVE, CGUIBitmapPlane_DAVEHD, CGUIBitmapPlane_eGML, CGUIBitmapPlane_GL, and CGUIBitmapPlaneDirectFb.

◆ DrawToBitmap()

virtual eC_Bool CGUIBitmapPlane::DrawToBitmap ( )

inlineprotectedvirtual

Called by the framework when the drawing operation into the bitmapplane is about to begin.

Returns: always true

Reimplemented in CGUIBitmapPlane_eGML, CGUIBitmapPlane_FBO, CGUIBitmapPlane_GL, CGUIBitmapPlane_PBuffer, and CGUIBitmapPlaneDirectFb.

◆ DrawToScreen()

virtual eC_Bool CGUIBitmapPlane::DrawToScreen ( )

inlineprotectedvirtual

Called by the framework when subsequent drawing operations shall happen on the normal UI screen.

Returns: always true

Reimplemented in CGUIBitmapPlane_FBO, CGUIBitmapPlane_GL, CGUIBitmapPlane_PBuffer, and CGUIBitmapPlaneDirectFb.

◆ EnableDepthTest()

void CGUIBitmapPlane::EnableDepthTest ( )

inline

Enables the DepthTest for this Plane. If DepthCorrection is enabled the BitmapPlane may be partly or completely invisible, even if its parent Object is completely visible, because if the DepthTest is enabled the visibility depends on the Z-Position. DepthTest is not supported on all Graphics Wrappers.

See also: EnableDepthTest()

◆ FinishDrawToBitmap()

virtual eC_Bool CGUIBitmapPlane::FinishDrawToBitmap ( )

inlineprotectedvirtual

Called by the framework when the drawing operation into the bitmapplane has finished.

Returns: always true

Reimplemented in CGUIBitmapPlane_eGML, CGUIBitmapPlane_PBuffer, and CGUIBitmapPlaneDirectFb.

◆ Get2DPlaneDistance()

virtual eC_Value CGUIBitmapPlane::Get2DPlaneDistance ( )

virtual

Calculates the distance where 10, 10 rect has the size of 10, 10 pixel

Returns: z-distance of the 2D plane

Reimplemented in CGUIBitmapPlane_GL.

◆ GetBottomLeftU()

virtual eC_Value CGUIBitmapPlane::GetBottomLeftU ( )

virtual

Accessor for the lower left U value.

Returns: U value of the lower left corner of the bitmap plane.

◆ GetBottomLeftV()

virtual eC_Value CGUIBitmapPlane::GetBottomLeftV ( )

virtual

Accessor for the lower left V value.

Returns: U value of the lower left corner of the bitmap plane.

Reimplemented in CGUIBitmapPlane_GL.

◆ GetBottomRightU()

virtual eC_Value CGUIBitmapPlane::GetBottomRightU ( )

virtual

Accesoor for the lower right U value.

Returns: U value of the lower right corner of the bitmap plane.

◆ GetBottomRightV()

virtual eC_Value CGUIBitmapPlane::GetBottomRightV ( )

virtual

Accessor for the lower right V value.

Returns: U value of the lower right corner of the bitmap plane.

Reimplemented in CGUIBitmapPlane_GL.

◆ GetBytesPerPixel()

eC_UByte CGUIBitmapPlane::GetBytesPerPixel ( ) const

inline

Accessor for the number of bytes per pixel

Returns: bytes per pixel

◆ GetCenterOfProjectionAbsX()

eC_Value CGUIBitmapPlane::GetCenterOfProjectionAbsX ( ) const

protected

Accessor for the x coordinate of the center of projection. The center of projection is center of origin, by default it is the center of the parent GUIObject

Returns: x coordinate of the Center of projection

◆ GetCenterOfProjectionAbsY()

eC_Value CGUIBitmapPlane::GetCenterOfProjectionAbsY ( ) const

protected

Accessor for the y coordinate of the center of projection. The center of projection is center of origin, by default it is the center of the parent GUIObject

Returns: y coordinate of the Center of projection

◆ GetData()

virtual void CGUIBitmapPlane::GetData ( eC_TArray< eC_UByte > * pkData )

inlinevirtual

Return the data in an array

Parameters

pkData

Reimplemented in CGUIBitmapPlane_BLU, CGUIBitmapPlane_DAVE, CGUIBitmapPlane_DAVEHD, CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ GetFar()

eC_Value CGUIBitmapPlane::GetFar ( ) const

inline

Returns: far plane for viewing frustum

◆ GetFormat()

CGUICommonEnums::ImageType_t CGUIBitmapPlane::GetFormat ( ) const

inline

Accessor for the image-format

Returns: image-format

◆ GetFOV()

eC_Value CGUIBitmapPlane::GetFOV ( ) const

inline

Returns: static Near/Far Plane and Field of View, these values are the same for all CGUIBitmaps

◆ GetHeight()

eC_Value CGUIBitmapPlane::GetHeight ( ) const

inline

Accessor for the height.

Returns: height of this BitmapPlane.

◆ GetHeightCorrected()

eC_Value CGUIBitmapPlane::GetHeightCorrected ( ) const

Accessor for the height, corrected by the deformation of the parent GUIObject.

Returns: corrected height of this BitmapPlane.

◆ GetID()

GUIBitmapPlaneID_t CGUIBitmapPlane::GetID ( ) const

inline

Accessor for the unique BitmapPlane ID.

Returns: unique BitmapPlane ID.

◆ GetNear()

eC_Value CGUIBitmapPlane::GetNear ( ) const

inline

Returns: near plane for viewing frustum

◆ GetParentGUIObject()

const CGUIObject & CGUIBitmapPlane::GetParentGUIObject ( ) const

inline

Accessor for parent GUIObject

Returns: const reference to the parent GUIObject

◆ GetTopLeftU()

virtual eC_Value CGUIBitmapPlane::GetTopLeftU ( )

virtual

Accessor for the upper left U value.

Returns: U value of the upper left corner of the bitmap plane.

◆ GetTopLeftV()

virtual eC_Value CGUIBitmapPlane::GetTopLeftV ( )

virtual

Accessor for the upper left V value.

Returns: U value of the upper left corner of the bitmap plane.

Reimplemented in CGUIBitmapPlane_GL.

◆ GetTopRightU()

virtual eC_Value CGUIBitmapPlane::GetTopRightU ( )

virtual

Accessor for the upper right U value.

Returns: U value of the upper right corner of the bitmap plane.

◆ GetTopRightV()

virtual eC_Value CGUIBitmapPlane::GetTopRightV ( )

virtual

Accessor for the upper right V value.

Returns: U value of the upper right corner of the bitmap plane.

Reimplemented in CGUIBitmapPlane_GL.

◆ GetWidth()

eC_Value CGUIBitmapPlane::GetWidth ( ) const

inline

Accessor for the width. The scale parameter which will be used for the autoscale mechanism will be updated.

Returns: width of this BitmapPlane.

◆ GetWidthCorrected()

eC_Value CGUIBitmapPlane::GetWidthCorrected ( ) const

Accessor for the width, corrected by the deformation of the parent GUIObject.

Returns: corrected width of this BitmapPlane.

◆ GetXAngle()

eC_Value CGUIBitmapPlane::GetXAngle ( ) const

inline

Accessor for X-Angle.

Returns: X-Angle in degree.

◆ GetXPos()

eC_Value CGUIBitmapPlane::GetXPos ( ) const

inline

Accesor for the X-Position in 3D space.

Returns: x coordinate.

◆ GetXPos2D()

eC_Value CGUIBitmapPlane::GetXPos2D ( ) const

Accesor for the X-Position in screen coordinates.

Returns: x coordinate relative to the upper left corner of the parent GUIObject.

◆ GetYAngle()

eC_Value CGUIBitmapPlane::GetYAngle ( ) const

inline

Accessor for Y-Angle.

Returns: Y-Angle in degree.

◆ GetYPos()

eC_Value CGUIBitmapPlane::GetYPos ( ) const

inline

Accesor for the y-Position in 3D space.

Returns: y coordinate.

◆ GetYPos2D()

eC_Value CGUIBitmapPlane::GetYPos2D ( ) const

Accesor for the Y-Position in screen coordinates.

Returns: y coordinate relative to the upper left corner of the parent GUIObject.

◆ GetZAngle()

eC_Value CGUIBitmapPlane::GetZAngle ( ) const

inline

Accessor for Z-Angle.

Returns: Z-Angle in degree.

◆ GetZPos()

eC_Value CGUIBitmapPlane::GetZPos ( ) const

inline

Accesor for the Z-Position in 3D space.

Returns: z coordinate.

◆ IsDepthTestEnabled()

eC_Bool CGUIBitmapPlane::IsDepthTestEnabled ( ) const

inline

Checks whether the DepthTest is enabled or not.

Returns: True if DepthTest is enabled, otherwise False.

See also: EnableDepthTest(); DisableDepthTest()

◆ IsYFlipped()

eC_Bool CGUIBitmapPlane::IsYFlipped ( ) const

inline

Returns: true if y is flipped

◆ ResetRotation()

void CGUIBitmapPlane::ResetRotation ( )

Resets all three rotation angles.

◆ RotateX()

void CGUIBitmapPlane::RotateX ( const eC_Value vXAngle )

inline

Sets the X-Rotation of this BitmapPlane. Object will be rotated around its center.

Parameters

vXAngle X-Angle in degree

◆ RotateY()

void CGUIBitmapPlane::RotateY ( const eC_Value vYAngle )

inline

Sets the Y-Rotation of this BitmapPlane. Object will be rotated around its center.

Parameters

vYAngle Y-Angle in degree

◆ RotateZ()

void CGUIBitmapPlane::RotateZ ( const eC_Value vZAngle )

inline

Sets the Z-Rotation of this BitmapPlane. Object will be rotated around its center.

Parameters

vZAngle Z-Angle in degree

◆ SetAlphaValue()

void CGUIBitmapPlane::SetAlphaValue ( const eC_UByte ubAlpha )

inline

Set one alpha value for all corners of the Bitmap plane.

Parameters

ubAlpha The Alpha value for the Bitmap plane.

◆ SetAlphaValues()

virtual void CGUIBitmapPlane::SetAlphaValues	(	const eC_UByte	ubTopLeft,
		const eC_UByte	ubBottomLeft,
		const eC_UByte	ubBottomRight,
		const eC_UByte	ubTopRight
	)

inlinevirtual

Sets the alpha values for all corners of the Bitmap plane.

Parameters

ubTopLeft	alpha value for the upper left corner
ubBottomLeft	alpha value for the lower left corner
ubBottomRight	alpha value for the lower right corner
ubTopRight	alpha value for the upper right corner

Reimplemented in CGUIBitmapPlane_BLU, CGUIBitmapPlane_DAVE, CGUIBitmapPlane_DAVEHD, CGUIBitmapPlane_eGML, CGUIBitmapPlane_GL, and CGUIBitmapPlaneDirectFb.

◆ SetAutoScale()

void CGUIBitmapPlane::SetAutoScale ( const eC_Bool bAutoScale )

inline

Enables/Disables the AutoScale mode. If AutoScale mode is active the BitmapPlane is resized if the parent GUIObject is resized By default AutoScale mode is active

Parameters

bAutoScale False if the autoscale mode should be disabled otherwise true

◆ SetBottomLeftU()

virtual void CGUIBitmapPlane::SetBottomLeftU ( eC_Value vU )

virtual

Sets the U Value of the lower left corner of the BitmapPlane. The U value describes which point of the Bitmap is mapped onto the plane in x direction. The value has to be between 0 and 1, where zero means the lower left corner of the plane maps directly on the left edge of the bitmap and 1 the lower left corner maps on the right edge of the bitmap. All values in between will be interpolated.

Parameters

vU	new U value for the lower left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML.

◆ SetBottomLeftUV()

void CGUIBitmapPlane::SetBottomLeftUV	(	eC_Value	vU,
		eC_Value	vV
	)

inline

Sets the U/V values for the lower left corner of the bitmap plane.

Parameters

vU	new U value for the lower left corner
vV	new V value for the lower left corner

See also: SetBottomLeftV, SetBottomLeftU

◆ SetBottomLeftV()

virtual void CGUIBitmapPlane::SetBottomLeftV ( eC_Value vV )

virtual

Sets the V Value of the lower left corner of the BitmapPlane. The V value describes which point of the Bitmap is mapped onto the plane in y direction. The value has to be between 0 and 1, where zero means the lower left corner of the plane maps directly on the upper edge of the bitmap and 1 the lower left corner maps on the lower edge of the bitmap. All values in between will be interpolated.

Parameters

vV	new V value for the lower left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetBottomRightU()

virtual void CGUIBitmapPlane::SetBottomRightU ( eC_Value vU )

virtual

Sets the U Value of the bottom right corner of the BitmapPlane. The U value describes which point of the Bitmap is mapped onto the plane in x direction. The value has to be between 0 and 1, where zero means the lower right corner of the plane maps directly on the left edge of the bitmap and 1 the lower right corner maps on the right edge of the bitmap. All values in between will be interpolated.

Parameters

vU	new U value for the lower right corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML.

◆ SetBottomRightUV()

void CGUIBitmapPlane::SetBottomRightUV	(	eC_Value	vU,
		eC_Value	vV
	)

inline

Sets the U/V values for the lower right corner of the bitmap plane.

Parameters

vU	new U value for the lower right corner
vV	new V value for the lower right corner

See also: SetBottomRightV, SetBottomRightU

◆ SetBottomRightV()

virtual void CGUIBitmapPlane::SetBottomRightV ( eC_Value vV )

virtual

Sets the V Value of the lower left corner of the BitmapPlane. The V value describes which point of the Bitmap is mapped onto the plane in y direction. The value has to be between 0 and 1, where zero means the lower left corner of the plane maps directly on the upper edge of the bitmap and 1 the lower left corner maps on the lower edge of the bitmap. All values in between will be interpolated.

Parameters

vV	new V value for the lower left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetBytesPerPixel()

void CGUIBitmapPlane::SetBytesPerPixel ( const eC_UByte & ubBPP )

inline

Setter for the number of bytes per pixel

Parameters

ubBPP bytes per pixel

◆ SetFormat()

void CGUIBitmapPlane::SetFormat ( const CGUICommonEnums::ImageType_t & eFormat )

inline

Setter for the image-format

Parameters

eFormat image-format

◆ SetFOV()

void CGUIBitmapPlane::SetFOV ( const eC_Value vFOV )

inline

Parameters

vFOV	static Near/Far Plane and Field of View, these values are the same for all CGUIBitmaps

◆ SetHeight()

virtual void CGUIBitmapPlane::SetHeight	(	eC_Value	vHeight,
		eC_Bool	bExpandCentered = `false`
	)

virtual

Setter for the height.

Parameters

vHeight	new height of this BitmapPlane.
bExpandCentered	if true Plane will be expanded to top and bottom, otherwise only to the bottom. default is false

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetPos2D()

void CGUIBitmapPlane::SetPos2D	(	eC_Value	vXPos,
		eC_Value	vYPos
	)

Sets the Position of this BitmapPlane in screen coordinates. Position will be set relative to the upper left corner of the parent GUIObject. The Z Coordinate will be set in that way that a 10x10 BitmapPlane has the size of 10x10 pixel on the screen

Parameters

vXPos	x coordinate relative to the upper left corner of the parent GUIObject
vYPos	y coordinate relative to the upper left corner of the parent GUIObject

◆ SetPos3D()

void CGUIBitmapPlane::SetPos3D	(	eC_Value	vXPos,
		eC_Value	vYPos,
		eC_Value	vZPos
	)

inline

Sets the Position of this BitmapPlane in 3D space. Point of origin is the center of the parent GUIObject.

Parameters

vXPos	x coordinate
vYPos	y coordinate
vZPos	z coordinate

◆ SetTexUsed()

void CGUIBitmapPlane::SetTexUsed	(	eC_Value	vNewTexUsedU,
		eC_Value	vNewTexUsedV
	)

protected

Sets a new value for the used texture part

Parameters

vNewTexUsedU	new u value representing the used part of the texture
vNewTexUsedV	new v value representing the used part of the texture

◆ SetTopLeftU()

virtual void CGUIBitmapPlane::SetTopLeftU ( eC_Value vU )

virtual

Sets the U Value of the upper left corner of the BitmapPlane. The U value describes which point of the Bitmap is mapped onto the plane in x direction. The value has to be between 0 and 1, where zero means the upper left corner of the plane maps directly on the left edge of the bitmap and 1 the upper left corner maps on the right edge of the bitmap. All values in between will be interpolated.

Parameters

vU	new U value for the upper left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML.

◆ SetTopLeftUV()

void CGUIBitmapPlane::SetTopLeftUV	(	eC_Value	vU,
		eC_Value	vV
	)

inline

Sets the U/V values for the top left corner of the bitmap plane.

Parameters

vU	new U value for the top left corner
vV	new V value for the top left corner

See also: SetTopLeftV, SetTopLeftU

◆ SetTopLeftV()

virtual void CGUIBitmapPlane::SetTopLeftV ( eC_Value vV )

virtual

Sets the V Value of the upper left corner of the BitmapPlane. The V value describes which point of the Bitmap is mapped onto the plane in y direction. The value has to be between 0 and 1, where zero means the upper left corner of the plane maps directly on the upper edge of the bitmap and 1 the upper left corner maps on the lower edge of the bitmap. All values in between will be interpolated.

Parameters

vV	new V value for the upper left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetTopRightU()

virtual void CGUIBitmapPlane::SetTopRightU ( eC_Value vU )

virtual

Sets the U Value of the upper right corner of the BitmapPlane. The U value describes which point of the Bitmap is mapped onto the plane in x direction. The value has to be between 0 and 1, where zero means the upper right corner of the plane maps directly on the left edge of the bitmap and 1 the upper right corner maps on the right edge of the bitmap. All values in between will be interpolated.

Parameters

vU	new U value for the upper left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML.

◆ SetTopRightUV()

void CGUIBitmapPlane::SetTopRightUV	(	eC_Value	vU,
		eC_Value	vV
	)

inline

Sets the U/V values for the upper right corner of the bitmap plane.

Parameters

vU	new U value for the upper right corner
vV	new V value for the upper right corner

See also: SetTopRightV, SetTopRightU

◆ SetTopRightV()

virtual void CGUIBitmapPlane::SetTopRightV ( eC_Value vV )

virtual

Sets the V Value of the upper right corner of the BitmapPlane. The V value describes which point of the Bitmap is mapped onto the plane in y direction. The value has to be between 0 and 1, where zero means the upper right corner of the plane maps directly on the upper edge of the bitmap and 1 the upper right corner maps on the lower edge of the bitmap. All values in between will be interpolated.

Parameters

vV	new V value for the upper left corner. [0 1]

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetWidth()

virtual void CGUIBitmapPlane::SetWidth	(	eC_Value	vWidth,
		eC_Bool	bExpandCentered = `false`
	)

virtual

Setter for the width. The scale parameter which will be used for the autoscale mechanism will be updated.

Parameters

vWidth	new width of this BitmapPlane.
bExpandCentered	if true Plane will be expanded to left and right, otherwise only to the right. default is false

Reimplemented in CGUIBitmapPlane_eGML, and CGUIBitmapPlane_GL.

◆ SetXPos2D()

void CGUIBitmapPlane::SetXPos2D ( eC_Value vXPos )

Sets the X-Position of this BitmapPlane in screen coordinates. Position will be set relative to the upper left corner of the parent GUIObject. The Z Coordinate will be set in that way that a 10x10 BitmapPlane has the size of 10x10 pixel on the screen

Parameters

vXPos x coordinate relative to the upper left corner of the parent GUIObject

◆ SetXPos3D()

void CGUIBitmapPlane::SetXPos3D ( const eC_Value vXPos )

inline

Sets the X-Position of this BitmapPlane in 3D space. Point of origin is the center of the parent GUIObject.

Parameters

vXPos x coordinate

◆ SetYPos2D()

void CGUIBitmapPlane::SetYPos2D ( eC_Value vYPos )

Sets the Y-Position of this BitmapPlane in screen coordinates. Position will be set relative to the upper left corner of the parent GUIObject. The Z Coordinate will be set in that way that a 10x10 BitmaPlane has the size of 10x10 pixel on the screen

Parameters

vYPos y coordinate relative to the upper left corner of the parent GUIObject

◆ SetYPos3D()

void CGUIBitmapPlane::SetYPos3D ( const eC_Value vYPos )

inline

Sets the YPosition of this BitmapPlane in 3D space. Point of origin is the center of the parent GUIObject.

Parameters

vYPos y coordinate

◆ SetZPos3D()

void CGUIBitmapPlane::SetZPos3D ( const eC_Value vZPos )

inline

Sets the Z-Position of this BitmapPlane in 3D space. Point of origin is the center of the parent GUIObject.

Parameters

vZPos z coordinate

Friends And Related Function Documentation

◆ CGfxWrap

friend class CGfxWrap

friend

The documentation for this class was generated from the following file:

GUIBitmapPlane.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ CGUIBitmapPlane()

Member Function Documentation

◆ Clear()

◆ DisableDepthTest()

◆ DoDraw()

◆ DrawToBitmap()

◆ DrawToScreen()

◆ EnableDepthTest()

◆ FinishDrawToBitmap()

◆ Get2DPlaneDistance()

◆ GetBottomLeftU()

◆ GetBottomLeftV()

◆ GetBottomRightU()

◆ GetBottomRightV()

◆ GetBytesPerPixel()

◆ GetCenterOfProjectionAbsX()

◆ GetCenterOfProjectionAbsY()

◆ GetData()

◆ GetFar()

◆ GetFormat()

◆ GetFOV()

◆ GetHeight()

◆ GetHeightCorrected()

◆ GetID()

◆ GetNear()

◆ GetParentGUIObject()

◆ GetTopLeftU()

◆ GetTopLeftV()

◆ GetTopRightU()

◆ GetTopRightV()

◆ GetWidth()

◆ GetWidthCorrected()

◆ GetXAngle()

◆ GetXPos()

◆ GetXPos2D()

◆ GetYAngle()

◆ GetYPos()

◆ GetYPos2D()

◆ GetZAngle()

◆ GetZPos()

◆ IsDepthTestEnabled()

◆ IsYFlipped()

◆ ResetRotation()

◆ RotateX()

◆ RotateY()

◆ RotateZ()

◆ SetAlphaValue()

◆ SetAlphaValues()

◆ SetAutoScale()

◆ SetBottomLeftU()

◆ SetBottomLeftUV()

◆ SetBottomLeftV()

◆ SetBottomRightU()

◆ SetBottomRightUV()

◆ SetBottomRightV()

◆ SetBytesPerPixel()

◆ SetFormat()

◆ SetFOV()

◆ SetHeight()

◆ SetPos2D()

◆ SetPos3D()

◆ SetTexUsed()

◆ SetTopLeftU()

◆ SetTopLeftUV()

◆ SetTopLeftV()

◆ SetTopRightU()

◆ SetTopRightUV()

◆ SetTopRightV()

◆ SetWidth()

◆ SetXPos2D()

◆ SetXPos3D()

◆ SetYPos2D()

◆ SetYPos3D()

◆ SetZPos3D()
