Slider base class. More...

#include <GUIBaseSlider.h>

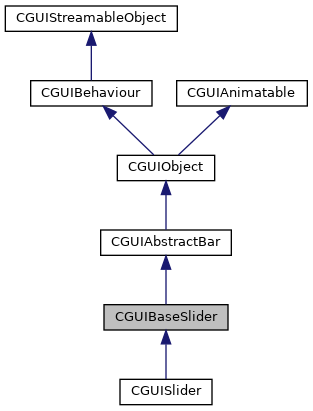

Inheritance diagram for CGUIBaseSlider:

[legend]

Public Types
enum	SliderMode_t { SM_NONE = 0 , SM_JUMPTOCLICK , SM_SCROLLTOCLICK }
	Defines Behaviour of slider when clicking beneath knob. More...

Public Types inherited from CGUIObject
enum	FourWayFocus_t { FOCUS_LEFT , FOCUS_RIGHT , FOCUS_UP , FOCUS_DOWN }

Public Member Functions
	CGUIBaseSlider ()

	CGUIBaseSlider (CGUICompositeObject *const pkParent, const CGUIRect &kRect, const eC_Int &iValue, const eC_Int &iMin, const eC_Int &iMax, const eC_UInt &uiStepSize, const CGUIRange::Base_t &eBase=CGUIRange::BASE_AT_MINIMUM, const CGUICommonEnums::Orientation_t &eStyle=CGUICommonEnums::OR_HORIZONTAL, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIBaseSlider (CGUICompositeObject *const pkParent, const eC_Value &vX, const eC_Value &vY, const eC_Value &vWidth, const eC_Value &vHeight, const eC_Int &iValue, const eC_Int &iMin, const eC_Int &iMax, const eC_UInt &uiStepSize, const CGUIRange::Base_t &eBase=CGUIRange::BASE_AT_MINIMUM, const CGUICommonEnums::Orientation_t &eStyle=CGUICommonEnums::OR_HORIZONTAL, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIBaseSlider (const CGUIBaseSlider &kSource)

virtual	~CGUIBaseSlider ()

virtual CGUIRect	CalculateKnobRect ()

virtual eC_Bool	DoButtonDown (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoClick (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoDrag (const eC_Value &vDeltaX, const eC_Value &vDeltaY, const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoDragEnd (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoDraw ()

eC_Value	GetKnobSizeHorizontal () const

eC_Value	GetKnobSizeVertical () const

CGUICommonEnums::Orientation_t	GetOrientation () const

eC_UInt	GetScrollDistance () const

SliderMode_t	GetSliderMode () const

eC_Value	GetSliderTrackLength () const

CGUIBaseSlider &	operator= (const CGUIBaseSlider &kSource)

virtual void	ReadFromStream ()

virtual void	SetHeight (const eC_Value &vY)

void	SetKnobSize (const eC_Value &vKnobSize)

void	SetKnobSizeHorizontal (const eC_Value &vKnobSize)

void	SetKnobSizeVertical (const eC_Value &vKnobSize)

void	SetMinimumKnobSize (const eC_Value vMinimumKnobSize)

void	SetScrollDistance (const eC_UInt &uiDistance)

void	SetSliderMaxPos (const eC_Value vSliderMaxPos)

void	SetSliderMinPos (const eC_Value vSliderMinPos)

void	SetSliderMode (const SliderMode_t &eMode)

void	SetSliderTrackDistance (const eC_Value vPixel)

virtual void	SetWidth (const eC_Value &vX)

virtual void	WriteToStream (const eC_Bool bWriteClassID=false)

Public Member Functions inherited from CGUIAbstractBar
void	AnimateToValue (const eC_Int iTargetValue)

eC_Bool	Decrease ()

virtual void	DoAnimate (const eC_Value &vTimes=eC_FromInt(1))

eC_UInt	GetAnimationInterval () const

eC_UInt	GetAnimationSpeed () const

const CGUIRange &	GetRange () const

eC_Bool	Increase ()

virtual eC_Bool	OnValueChange ()

void	SetAnimationInterval (const eC_UInt &ruiAnimationInterval)

void	SetAnimationSpeed (const eC_UInt &ruiAnimationSpeed)

void	SetBase (CGUIRange::Base_t eBase)

void	SetLevel (eC_Value vPercent)

void	SetLevelPercentage (eC_UInt uiPercentage)

void	SetMaximumLevelIsAlwaysValid (eC_Bool bNotOnlyMultiplesOfStepSize)

void	SetMaxValue (eC_Int iMaxValue)

void	SetMinValue (eC_Int iMinValue)

void	SetRange (eC_Int iMinValue, eC_Int iMaxValue)

void	SetStepSize (eC_UInt uiIntValues)

void	SetStepSizeLevel (eC_Value vPercent)

void	SetStepSizeLevelPercentage (eC_UInt uiPercentage)

virtual eC_Bool	SetValue (const CGUIValue &rkValue)

Public Member Functions inherited from CGUIObject
	CGUIObject ()

	CGUIObject (CGUICompositeObject *const pkParent, const CGUIRect &kRect, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIObject (CGUICompositeObject *const pkParent, const eC_Value &vX, const eC_Value &vY, const eC_Value &vWidth, const eC_Value &vHeight, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIObject (const CGUIObject &kSource)

virtual	~CGUIObject ()

void	AddValueObserver (CGUIObserver *pkObserver)

eC_Bool	CalculateInvalidatedRect (CGUIRect &rRect) const

virtual eC_Bool	ClaimFocus ()

virtual void	CreateSnapshot (eC_UInt uiBackColor=0x00)

eC_Bool	DataPoolConnectorExists () const

void	DeleteSnapshot ()

virtual void	DisableSnapshotDrawing (eC_Bool bDeleteSnapshot=true)

virtual eC_Bool	DoDraw ()

virtual eC_Bool	DoDrawSnapshot ()

virtual void	EnableSnapshotDrawing ()

virtual CGUIObject *	FindObject (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	FocusAny ()

virtual eC_Bool	FocusNext (CGUIObject *const pRefObj=NULL, const eC_Bool &bSubTreeOfRefObjDone=false)

virtual eC_Bool	FocusPrevious (CGUIObject *const pRefObj=NULL, const eC_Bool &bSubTreeOfRefObjDone=false)

CGUIRect	GetAbsRect () const

eC_Value	GetAbsXPos () const

eC_Value	GetAbsXPosCenter () const

eC_Value	GetAbsXPosREdge () const

eC_Value	GetAbsYPos () const

eC_Value	GetAbsYPosBEdge () const

eC_Value	GetAbsYPosCenter () const

eC_UByte	GetAlpha () const

CGUIBehaviourDecorator *	GetBehaviour ()

const CGUIBehaviourDecorator *	GetBehaviour () const

GUIBitmapPlaneID_t	GetBitmapID () const

CGUIBitmapPlane &	GetBitmapPlane () const

CGUIRect	GetCurrentAbsRect () const

eC_Value	GetCurrentAbsXPos () const

eC_Value	GetCurrentAbsXPosCenter () const

eC_Value	GetCurrentAbsXPosREdge () const

eC_Value	GetCurrentAbsYPos () const

eC_Value	GetCurrentAbsYPosBEdge () const

eC_Value	GetCurrentAbsYPosCenter () const

CDataPoolConnector &	GetDataPoolConnector ()

eC_Value	GetDistanceBottom () const

eC_Value	GetDistanceRight () const

eC_Value	GetHalfHeight () const

eC_Value	GetHalfWidth () const

eC_Value	GetHeight () const

ObjectHandle_t	GetID () const

CGUILayouter *	GetLayouter ()

const CGUILayouter *	GetLayouter () const

ObjectHandle_t	GetNeighborBottomID () const

ObjectHandle_t	GetNeighborLeftID () const

ObjectHandle_t	GetNeighborRightID () const

ObjectHandle_t	GetNeighborTopID () const

CGUIObject *	GetObjectByID (const ObjectHandle_t &eID, const eC_Bool &bOnlyVisible=false)

const CGUIObject *	GetObjectByID (const ObjectHandle_t &eID, const eC_Bool &bOnlyVisible=false) const

CGUIRect	GetOriginRect () const

CGUICompositeObject *	GetParent ()

const CGUICompositeObject *	GetParent () const

CGUIRect	GetRelRect () const

eC_Value	GetRelXPos () const

eC_Value	GetRelXPosCenter () const

eC_Value	GetRelXPosREdge () const

eC_Value	GetRelYPos () const

eC_Value	GetRelYPosBEdge () const

eC_Value	GetRelYPosCenter () const

eC_Value	GetWidth () const

void	InvalidateArea ()

eC_Bool	IsClickable () const

eC_Bool	IsClickThrough () const

virtual eC_Bool	IsCompositeObject () const

eC_Bool	IsDescendantOf (const CGUIObject *const pAncestor) const

eC_Bool	IsDisabled () const

eC_Bool	IsDragable () const

eC_Bool	IsDragged () const

eC_Bool	IsDrawingSnapshot () const

eC_Bool	IsFocussable () const

eC_Bool	IsFocussed () const

eC_Bool	IsGrayedOut () const

virtual eC_Bool	IsHighlightable () const

eC_Bool	IsHighlighted () const

eC_Bool	IsInvisible () const

eC_Bool	IsPressed () const

eC_Bool	IsStopFocus () const

void	NotifyValueObservers (const CGUIValue &kValue, const eC_UInt uiX=0, const eC_UInt uiY=0)

CGUIObject &	operator= (const CGUIObject &kSource)

virtual void	ReadFromStream ()

virtual void	RefreshLayout (CGUILayouter::eMovedEdges_t eMovedEdges) const

void	RemoveValueObserver (CGUIObserver *pkObserver)

void	RenderToBitmap (eC_UInt uiBitmapID, eC_Value vXOffset=eC_FromInt(0), eC_Value vYOffset=eC_FromInt(0))

eC_Bool	RequestFocus ()

void	SetAlpha (eC_UByte ubAlpha)

void	SetBehaviour (CGUIBehaviourDecorator *pkBehaviour)

void	SetClickThrough (const eC_Bool &bClickThrough)

virtual void	SetDisabled (const eC_Bool &bDisabled)

virtual void	SetFocussable (const eC_Bool &bFocussable)

virtual void	SetGrayedOut (const eC_Bool &bGrayOut)

virtual void	SetHeight (const eC_Value &vY)

void	SetID (const ObjectHandle_t &eID)

virtual void	SetInvisible (const eC_Bool &bInvisible)

void	SetLayouter (CGUILayouter *pLayouter)

void	SetNeighborBottomID (const ObjectHandle_t eNewNeighborBottomID)

void	SetNeighborIDs (const ObjectHandle_t eNewNeighborLeftID, const ObjectHandle_t eNewNeighborRightID, const ObjectHandle_t eNewNeighborTopID, const ObjectHandle_t eNewNeighborBottomID)

void	SetNeighborLeftID (const ObjectHandle_t eNewNeighborLeftID)

void	SetNeighborRightID (const ObjectHandle_t eNewNeighborRightID)

void	SetNeighborTopID (const ObjectHandle_t eNewNeighborTopID)

virtual void	SetParent (CGUICompositeObject *const pkParent)

void	SetRelRect (const CGUIRect &kNewRect)

virtual void	SetRelXPos (const eC_Value &vX)

void	SetRelXPosCenter (const eC_Value &vXCenter)

void	SetRelXPosREdge (const eC_Value &vX)

virtual void	SetRelYPos (const eC_Value &vY)

void	SetRelYPosBEdge (const eC_Value &vY)

void	SetRelYPosCenter (const eC_Value &vYCenter)

void	SetStopFocus (const eC_Bool &bDontFocusToParent)

virtual eC_Bool	SetValue (CDataPoolEntry &rkValue)

virtual eC_Bool	SetValue (const CGUIValue &rkValue)

virtual void	SetWidth (const eC_Value &vX)

virtual void	WriteToStream (const eC_Bool bWriteClassID=false)

Public Member Functions inherited from CGUIBehaviour
virtual eC_Bool	DoUserEvent (CGUIEvent *const pEvent)

virtual void	OnCreate ()

virtual void	OnDelete ()

virtual void	OnHide ()

virtual void	OnShow ()

virtual eC_Bool	DoLongClick (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual eC_Bool	DoDoubleClick (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual eC_Bool	DoButtonUp (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual eC_Bool	DoMouseEnter (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual eC_Bool	DoMouseLeave (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual eC_Bool	DoMouseMove (const eC_Value &vAbsX=eC_FromInt(-1), const eC_Value &vAbsY=eC_FromInt(-1))

virtual void	GetFocus ()

virtual void	LoseFocus ()

virtual eC_Bool	DoKeyDown (const GUIKeyIdentifier_t &eKeyIdentifier, const eC_UInt &uiModifiers)

virtual eC_Bool	DoKeyUp (const GUIKeyIdentifier_t &eKeyIdentifier, const eC_UInt &uiModifiers)

virtual eC_Bool	DoChar (const eC_UInt &uiKey, const GUIKeyIdentifier_t &eKeyIdentifier, const eC_UInt &uiModifiers)

virtual eC_Bool	DoScrollUp (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoScrollDown (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoScrollLeft (const eC_Value &vAbsX, const eC_Value &vAbsY)

virtual eC_Bool	DoScrollRight (const eC_Value &vAbsX, const eC_Value &vAbsY)

Public Member Functions inherited from CGUIStreamableObject
const eC_String &	GetXMLTag () const

virtual void	ReadFromStream ()

void	SetXMLTag (const eC_String &kXMLTag)

virtual void	WriteToStream (const eC_Bool bWriteClassID=false)

Public Member Functions inherited from CGUIAnimatable
virtual	~CGUIAnimatable ()
	Destructor. Removes all existing animation callbacks.

virtual void	DoAnimate (const eC_Value &vTimes=eC_FromInt(1))

virtual eC_Bool	IsAnimating () const

virtual void	StartAnimation ()

virtual void	StopAnimation ()

Protected Member Functions
void	ClipToPixelBounds (eC_Value &vPos) const

void	CopyAttributes (const CGUIBaseSlider &kSource)

eC_Int	GetSliderValue (const eC_Value &vAbsX, const eC_Value &vAbsY) const

void	Init (const eC_Int &iValue, const eC_Int &iMin, const eC_Int &iMax, const eC_UInt &uiStepSize, const CGUIRange::Base_t &eBase)

void	SetSliderPos (const eC_Value &vAbsX, const eC_Value &vAbsY)

Protected Member Functions inherited from CGUIAbstractBar
	CGUIAbstractBar ()

	CGUIAbstractBar (CGUICompositeObject *const pkParent, const CGUIRect &kRect, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIAbstractBar (CGUICompositeObject *const pkParent, const eC_Value &vX, const eC_Value &vY, const eC_Value &vWidth, const eC_Value &vHeight, const ObjectHandle_t &eID=NO_HANDLE)

	CGUIAbstractBar (const CGUIAbstractBar &kSource)

CGUIAbstractBar &	operator= (const CGUIAbstractBar &kSource)

virtual void	ReadFromStream ()

virtual void	WriteToStream (const eC_Bool bWriteClassID=false)

Protected Member Functions inherited from CGUIObject
virtual eC_Bool	CreateBitmapPlane ()

virtual eC_Bool	FourWayNext (FourWayFocus_t eFocusDirection)

Protected Member Functions inherited from CGUIStreamableObject
eC_UInt	ReadStreamingHeader (const eC_UInt &uiClassVersion, const eC_UInt &uiClassMinVersion=0) const

void	WriteStreamingFooter (const eC_Bool &bWriteClassID) const

void	WriteStreamingHeader (const eC_Bool &bWriteClassID, const eC_Char *const pkClassIDTag, const eC_Int &iClassID, const eC_UInt &uiClassVersion) const

Protected Attributes
eC_Bool	m_bDraggingMode
	Still holding the mouse button while dragging?

eC_Bool	m_bStartOnKnob
	Click started on knob.

SliderMode_t	m_eSliderMode
	Define mode of slider operation.

CGUICommonEnums::Orientation_t	m_eStyle

eC_Int	m_iScrollDistance
	Specifies scroll distance in scroll mode.

CGUIRect	m_kKnobAbsRect

CGUIPoint	m_kRelDraggingPoint
	Relative point that is beeing dragged.

eC_Value	m_vDiffKnobMouse

eC_Value	m_vKnobSizeHorizontal

eC_Value	m_vKnobSizeVertical

eC_Value	m_vMinimumKnobSize
	Minimum allowed knob size (in direction of slider orientation) in pixels (Defaults to 10)

eC_Value	m_vSliderTrackDistance


eC_Value	m_vSliderMaxPos

eC_Value	m_vSliderMinPos

Friends
class	CGUIScrollBar

Additional Inherited Members
Static Public Attributes inherited from CGUIObject
static const eC_Char	XMLTAG_ALPHA []
	XML tag to be used writing alpha-value into a stream.

static const eC_Char	XMLTAG_CLICKTHROUGH []
	XML tag to be used writing clickthrough-state into a stream.

static const eC_Char	XMLTAG_CONTROLCLASSID []
	XML tag to be used when writing a control class ID into a stream.

static const eC_Char	XMLTAG_DISABLED []
	XML tag to be used writing disabled-state into a stream.

static const eC_Char	XMLTAG_FOCUSSABLE []
	XML tag to be used writing focussable-state into a stream.

static const eC_Char	XMLTAG_GRAYEDOUT []
	XML tag to be used writing grayedout-state into a stream.

static const eC_Char	XMLTAG_HEIGHT []
	XML tag to be used writing height into a stream.

static const eC_Char	XMLTAG_INVISIBLE []
	XML tag to be used writing invisible-state into a stream.

static const eC_Char	XMLTAG_OBJECTID []
	XML tag to be used writing object id into a stream.

static const eC_Char	XMLTAG_OVERRIDDENNEIGHBORS []
	XML tag to be used writing overridden neighbors into a stream.

static const eC_Char	XMLTAG_WIDTH []
	XML tag to be used writing width into a stream.

static const eC_Char	XMLTAG_XPOS []
	XML tag to be used writing x-position into a stream.

static const eC_Char	XMLTAG_YPOS []
	XML tag to be used writing y-position into a stream.

Static Public Attributes inherited from CGUIBehaviour
static const eC_Char	XMLTAG_BEHAVIOURCLASSID []
	XML tag to be used when writing a behaviour class ID into a stream.

Static Public Attributes inherited from CGUIStreamableObject
static const eC_Char	XMLTAG_CLASSVERSION []

Detailed Description

Slider base class.

Like all the "BaseXXXXX"-Classes, this serves primarily as base-class, from which you can derive your own customized objects. For a slider implementation which uses images to visualize itself, please refer to CGUISlider.

This class implements vector graphics based sliders and serves as a base class for other types of sliders. Vertically orientated sliders represent their maximum when the knob is at the topmost valid position. Horizontally ones represent their maximum when the knob is to the rightmost valid position. The same applies to the level of the associated range, for example, when the knob is at the topmost valid position of a vertical slider then the level is the highest valid one.

Base sliders have an area where the knob slides over when it is dragged, called slider track. The size of the slider track can be adjusted by calling SetSliderTrackDistance(). For base sliders the track distance influences the background graphics look, which is not true for image based GUISliders for example.

The knob is drawn by filled circles and the background graphics looks like the character H (a combination of 3 lines) that is stretched in the middle part. The left and right line on both sides of the character H lies under the middle of the knob at the slider knob's minimum and maximum positions respectively.

Example:

// Create horizontal slider.
CGUIBaseSlider* pkBaseSliderHor = new CGUIBaseSlider(this,
        eC_FromInt(0), eC_FromInt(0),
        eC_FromInt(500), eC_FromInt(30),
        50, 0, 100, 1,
        CGUIRange::BASE_AT_MINIMUM,
        CGUIBaseSlider::SLD_HORIZONTAL,
        OBJ_HORIZONTALSLIDER);

 // Get the length of the slider track in pixel
eC_Value vTrackLength = pkBaseSliderHor->GetSliderTrackLength();

// Set the value of the slider.
pkBaseSliderHor->SetValue((eC_Int)100);

Member Enumeration Documentation

◆ SliderMode_t

enum CGUIBaseSlider::SliderMode_t

Defines Behaviour of slider when clicking beneath knob.

Enumerator

SM_JUMPTOCLICK

undefined

SM_SCROLLTOCLICK

jump to click-position

scroll to click-position

Constructor & Destructor Documentation

◆ CGUIBaseSlider() [1/4]

CGUIBaseSlider::CGUIBaseSlider	(	CGUICompositeObject *const	pkParent,
		const eC_Value &	vX,
		const eC_Value &	vY,
		const eC_Value &	vWidth,
		const eC_Value &	vHeight,
		const eC_Int &	iValue,
		const eC_Int &	iMin,
		const eC_Int &	iMax,
		const eC_UInt &	uiStepSize,
		const CGUIRange::Base_t &	eBase = `CGUIRange::BASE_AT_MINIMUM`,
		const CGUICommonEnums::Orientation_t &	eStyle = `CGUICommonEnums::OR_HORIZONTAL`,
		const ObjectHandle_t &	eID = `NO_HANDLE`
	)

Constructor

Parameters

pkParent	Pointer to the designated parent object
vX	X-position relative to its parent object
vY	Y-position relative to its parent object
vWidth	Width of the slider
vHeight	Height of the slider
iValue	Current value of the slider
iMin	Minimum setting of the slider
iMax	Maximum setting of the slider
uiStepSize	The step size in units of the range
eBase	Steps are based at minimum or maximum.
eStyle	Style descriptor. Valid values are defined in CGUIBaseSlider::SliderStyles_t
eID	Object identifier

◆ CGUIBaseSlider() [2/4]

CGUIBaseSlider::CGUIBaseSlider	(	CGUICompositeObject *const	pkParent,
		const CGUIRect &	kRect,
		const eC_Int &	iValue,
		const eC_Int &	iMin,
		const eC_Int &	iMax,
		const eC_UInt &	uiStepSize,
		const CGUIRange::Base_t &	eBase = `CGUIRange::BASE_AT_MINIMUM`,
		const CGUICommonEnums::Orientation_t &	eStyle = `CGUICommonEnums::OR_HORIZONTAL`,
		const ObjectHandle_t &	eID = `NO_HANDLE`
	)

Constructor

Parameters

pkParent	Pointer to the designated parent object
kRect	A CGUIRect describing the slider
iValue	Current value of the slider
iMin	Minimum setting of the slider
iMax	Maximum setting of the slider
uiStepSize	The step size in units of the range
eBase	Steps are based at minimum or maximum.
eStyle	Style descriptor. Valid values are defined in CGUIBaseSlider::SliderStyles_t
eID	Object identifier

◆ CGUIBaseSlider() [3/4]

CGUIBaseSlider::CGUIBaseSlider ( const CGUIBaseSlider & kSource )

Copy-constructor of the CGUIBaseSlider class.

Parameters

kSource Source object to be copied to a newly created object.

◆ CGUIBaseSlider() [4/4]

CGUIBaseSlider::CGUIBaseSlider ( )

Standard constructor. Only to be called by factory. No user code should call this constructor, not even in streaming mode (that is, when GUILIANI_STREAM_GUI is defined)!

See also: CGUIAbstractBar()

◆ ~CGUIBaseSlider()

virtual CGUIBaseSlider::~CGUIBaseSlider ( )

virtual

Destructor

Member Function Documentation

◆ CalculateKnobRect()

virtual CGUIRect CGUIBaseSlider::CalculateKnobRect ( )

virtual

Calculates the area covered by the slider knob in coordinates relative to the slider.

Returns: Rectangle covered by slider knob in relative coordinates

◆ ClipToPixelBounds()

void CGUIBaseSlider::ClipToPixelBounds ( eC_Value & vPos ) const

inlineprotected

Clips the passed value to the pixel bounds to which the range is associated. The value is given in pixel units not as a value of the range.

Parameters

vPos	value to be clipped at min/max pos

◆ CopyAttributes()

void CGUIBaseSlider::CopyAttributes ( const CGUIBaseSlider & kSource )

protected

Copy attributes method of the CGUIBaseSlider class.

Parameters

kSource Source object to be copied.

◆ DoButtonDown()

virtual eC_Bool CGUIBaseSlider::DoButtonDown	(	const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)

virtual

Keeps the difference between real click point and middle of knob.

Parameters

vAbsX	X-position in screen coordinates where the click occurred
vAbsY	Y-position in screen coordinates where the click occurred

Returns: True The event has been handled.
False The event has not been handled.

Reimplemented from CGUIBehaviour.

◆ DoClick()

virtual eC_Bool CGUIBaseSlider::DoClick	(	const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)

virtual

Called when the object receives a click event. A click can e.g., be the result of a mouse click, a finger press/release sequence on touchscreens, or be triggered by a GK_ACTION keyboard event.

Note: DoClick() should work on the absolute positions of this object, that were set at the time of the passed redraw, as the user expects to click on what he sees and not to click on an object in a newer and probably intermediate state that he currently does not see. Thus, to calculate the relative position (where the mouse button was pressed and released at the same position for in a certain time span, relative to the origin of this object) from the vAbsY argument you must do it like this: vMyRelYPos = vAbsY - GetAbsYPos().

Parameters

vAbsX	X-position in screen coordinates where the click occurred
vAbsY	Y-position in screen coordinates where the click occurred

Returns: True The event has been handled.
False The event has not been handled. In this base implementation it always returns False.

Reimplemented from CGUIBehaviour.

◆ DoDrag()

virtual eC_Bool CGUIBaseSlider::DoDrag	(	const eC_Value &	vDeltaX,
		const eC_Value &	vDeltaY,
		const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)

virtual

Called when the object receives a Drag event. Drags are typically created if the mouse is being used while a mouse-button is being pressed, or if the user moves his finger over a touchscreen.

Parameters

vDeltaX	relative movement in x-direction since the last call of DoDrag/ButtonDown
vDeltaY	relative movement in y-direction since the last call of DoDrag/ButtonDown
vAbsX	current X-position in screen coordinates of the mouse
vAbsY	current Y-position in screen coordinates of the mouse

Returns: True If the event has been handled.
false Else.

Reimplemented from CGUIBehaviour.

◆ DoDragEnd()

virtual eC_Bool CGUIBaseSlider::DoDragEnd	(	const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)

virtual

Called on the dragged object (=the object on which the initial ButtonDown-event occurred) when the mouse button is released after a drag event.

Parameters

vAbsX	current X-position in screen coordinates of the mouse
vAbsY	current Y-position in screen coordinates of the mouse

Returns: True If the event has been handled.
false Else.

Reimplemented from CGUIBehaviour.

◆ DoDraw()

virtual eC_Bool CGUIBaseSlider::DoDraw ( )

virtual

Visualizes the object. It is forbidden to call SetRelXPos, SetRelYPos, SetWidth or SetHeight in DoDraw, i.e., it is not allowed to change the layout.

Returns: True if anything was drawn, False otherwise

Reimplemented from CGUIObject.

Reimplemented in CGUISlider.

◆ GetKnobSizeHorizontal()

eC_Value CGUIBaseSlider::GetKnobSizeHorizontal ( ) const

inline

Returns: The horizontal size of the knob

◆ GetKnobSizeVertical()

eC_Value CGUIBaseSlider::GetKnobSizeVertical ( ) const

inline

Returns: The vertical size of the knob

◆ GetOrientation()

CGUICommonEnums::Orientation_t CGUIBaseSlider::GetOrientation ( ) const

inline

Returns: the vertical or horizontal orientation

◆ GetScrollDistance()

eC_UInt CGUIBaseSlider::GetScrollDistance ( ) const

inline

Returns: the current scroll distance

◆ GetSliderMode()

SliderMode_t CGUIBaseSlider::GetSliderMode ( ) const

inline

Returns: the current slider mode

◆ GetSliderTrackLength()

eC_Value CGUIBaseSlider::GetSliderTrackLength ( ) const

inline

Returns the length of the slider's track. This value is determined by the slider track distance and the size of the slider control.

Returns: the length of the slider track in pixel

See also: SetSliderTrackDistance()

◆ GetSliderValue()

eC_Int CGUIBaseSlider::GetSliderValue	(	const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)		const

inlineprotected

Gets the value of the associated range of the control corresponding to the given position. Attention: This method may only be called at times when absolute positions are available (DoDraw, DoClick, DoDrag etc.)

Parameters

vAbsX	X-position in screen coordinates
vAbsY	Y-position in screen coordinates

Returns: The slider value

◆ Init()

void CGUIBaseSlider::Init	(	const eC_Int &	iValue,
		const eC_Int &	iMin,
		const eC_Int &	iMax,
		const eC_UInt &	uiStepSize,
		const CGUIRange::Base_t &	eBase
	)

protected

Helper function for constructors.

Parameters

iValue	Slider value
iMin	Min slider value
iMax	Max slider value
uiStepSize	Step size
eBase	Slider style

◆ operator=()

CGUIBaseSlider & CGUIBaseSlider::operator= ( const CGUIBaseSlider & kSource )

Assignment operator of the CGUIBaseSlider class.

Parameters

kSource Source object to be copied to an already existing object.

Returns: Copied object.

◆ ReadFromStream()

virtual void CGUIBaseSlider::ReadFromStream ( )

virtual

Reads all object attributes from streaming file. Only for use with GUIFactory. GUIStreamingFileReader has to be set in CGUI::Init().

See also: CGUIFactory

Reimplemented from CGUIAbstractBar.

Reimplemented in CGUISlider.

◆ SetHeight()

virtual void CGUIBaseSlider::SetHeight ( const eC_Value & vY )

virtual

Overridden to automatically update the slider's look.

Parameters

vY	the new height

Reimplemented from CGUIObject.

◆ SetKnobSize()

void CGUIBaseSlider::SetKnobSize ( const eC_Value & vKnobSize )

inline

Sets the knob size in pixels. (Sets identical size for width and height)

Note: The knob size and the slider track distance determine the size of the slider track.

Parameters

vKnobSize Knob size in pixels

◆ SetKnobSizeHorizontal()

void CGUIBaseSlider::SetKnobSizeHorizontal ( const eC_Value & vKnobSize )

Sets the horizontal knob size in pixels.

Parameters

vKnobSize Knob size in pixels

◆ SetKnobSizeVertical()

void CGUIBaseSlider::SetKnobSizeVertical ( const eC_Value & vKnobSize )

Sets the vertical knob size in pixels.

Parameters

vKnobSize Knob size in pixels

◆ SetMinimumKnobSize()

void CGUIBaseSlider::SetMinimumKnobSize ( const eC_Value vMinimumKnobSize )

inline

Sets the minimum allowed knob size (in direction of slider orientation) in pixels.

Parameters

vMinimumKnobSize Minimum knob size in pixels

◆ SetScrollDistance()

void CGUIBaseSlider::SetScrollDistance ( const eC_UInt & uiDistance )

Sets scroll distance

Parameters

uiDistance to scroll

◆ SetSliderMaxPos()

void CGUIBaseSlider::SetSliderMaxPos ( const eC_Value vSliderMaxPos )

Sets the slider's knob position when it represents the maximum value.

Parameters

vSliderMaxPos Relative pixel offset within the slider

◆ SetSliderMinPos()

void CGUIBaseSlider::SetSliderMinPos ( const eC_Value vSliderMinPos )

Sets the slider's knob position when it represents the minimum value.

Parameters

vSliderMinPos Relative pixel offset within the slider

◆ SetSliderMode()

void CGUIBaseSlider::SetSliderMode ( const SliderMode_t & eMode )

Sets the operation mode of the Slider

Parameters

eMode slider mode

◆ SetSliderPos()

void CGUIBaseSlider::SetSliderPos	(	const eC_Value &	vAbsX,
		const eC_Value &	vAbsY
	)

protected

DoDrag() checks if the slider graphics is dragged or the rest of the control is dragged and calls this function or not, which does the real work. Thus, CGUISlider need not implement this function again but may do and really does a different check in the current implementation.

Parameters

vAbsX	X-position of the dragging point in screen coordinates
vAbsY	Y-position of the dragging point in screen coordinates

◆ SetSliderTrackDistance()

void CGUIBaseSlider::SetSliderTrackDistance ( const eC_Value vPixel )

Sets the pixel distance between the slider's border and the slider track (=sliding area) This automatically updates the slider's knob mininmum and maximum positions.

Parameters

vPixel The distance in pixel between the slider track and the control's borders in the direction of the orientation (horizontal or vertical). The same distance applies to both borders. Positive values shrink down the sliding area of the slider, also called slider track, but do not alter the background graphics of image based GUISliders. Background graphics of base sliders are altered by the track distance.

◆ SetWidth()

virtual void CGUIBaseSlider::SetWidth ( const eC_Value & vX )

virtual

Overridden to automatically update the slider's look.

Parameters

vX	the new width

Reimplemented from CGUIObject.

◆ WriteToStream()

virtual void CGUIBaseSlider::WriteToStream ( const eC_Bool bWriteClassID = false )

virtual

Writes all object attributes to the streaming file. StreamWriter has to be initialized. Only for use with GUIStreamWriter.

Parameters

bWriteClassID This flag is used to select if writing of ControlID, leading and trailing tags is performed. Only GUIStreamWriter and GUICompositeObject have to set this flag true.

See also: CGUIStreamWriter

Reimplemented from CGUIAbstractBar.

Reimplemented in CGUISlider.

Friends And Related Function Documentation

◆ CGUIScrollBar

friend class CGUIScrollBar

friend

Member Data Documentation

◆ m_eStyle

CGUICommonEnums::Orientation_t CGUIBaseSlider::m_eStyle

protected

Orientation of this slider object Attention: it can only be changed in the constructor and the ReadFromStream() method in this class.

◆ m_kKnobAbsRect

CGUIRect CGUIBaseSlider::m_kKnobAbsRect

protected

Absolute rectangle of knob. This is used to communicate the absolute rectangle of the knob from DoDraw() to DoClick() and DoDrag().

◆ m_vDiffKnobMouse

eC_Value CGUIBaseSlider::m_vDiffKnobMouse

protected

Keeps the difference between knob middle and mouse position. Used in DoDrag() and DoButtonDown()

◆ m_vKnobSizeHorizontal

eC_Value CGUIBaseSlider::m_vKnobSizeHorizontal

protected

Size of knob in horizontal direction of the control in pixel. This value is set via SetKnobSizeHorizontal() in GUISlider and GUIScrollBar for example.

◆ m_vKnobSizeVertical

eC_Value CGUIBaseSlider::m_vKnobSizeVertical

protected

Size of knob in vertical direction of the control in pixel. This value is set via SetKnobSizeVertical() in GUISlider and GUIScrollBar for example.

◆ m_vSliderMaxPos

eC_Value CGUIBaseSlider::m_vSliderMaxPos

protected

Bounds for slider track, to gain some space to the min and max borders of the control. These values are relative to the control and fall in the range of [0 .. GetWidth() or GetHeight()]. These variables shall only be altered by SetSliderTrackDistance(), that is they should be treated read-only in derived classes.

◆ m_vSliderMinPos

eC_Value CGUIBaseSlider::m_vSliderMinPos

protected

Bounds for slider track, to gain some space to the min and max borders of the control. These values are relative to the control and fall in the range of [0 .. GetWidth() or GetHeight()]. These variables shall only be altered by SetSliderTrackDistance(), that is they should be treated read-only in derived classes.

◆ m_vSliderTrackDistance

eC_Value CGUIBaseSlider::m_vSliderTrackDistance

protected

See also: SetSliderTrackDistance This variable shall only be altered by SetSliderTrackDistance().

The documentation for this class was generated from the following file:

GUIBaseSlider.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SliderMode_t

Constructor & Destructor Documentation

◆ CGUIBaseSlider() [1/4]

◆ CGUIBaseSlider() [2/4]

◆ CGUIBaseSlider() [3/4]

◆ CGUIBaseSlider() [4/4]

◆ ~CGUIBaseSlider()

Member Function Documentation

◆ CalculateKnobRect()

◆ ClipToPixelBounds()

◆ CopyAttributes()

◆ DoButtonDown()

◆ DoClick()

◆ DoDrag()

◆ DoDragEnd()

◆ DoDraw()

◆ GetKnobSizeHorizontal()

◆ GetKnobSizeVertical()

◆ GetOrientation()

◆ GetScrollDistance()

◆ GetSliderMode()

◆ GetSliderTrackLength()

◆ GetSliderValue()

◆ Init()

◆ operator=()

◆ ReadFromStream()

◆ SetHeight()

◆ SetKnobSize()

◆ SetKnobSizeHorizontal()

◆ SetKnobSizeVertical()

◆ SetMinimumKnobSize()

◆ SetScrollDistance()

◆ SetSliderMaxPos()

◆ SetSliderMinPos()

◆ SetSliderMode()

◆ SetSliderPos()

◆ SetSliderTrackDistance()

◆ SetWidth()

◆ WriteToStream()

Friends And Related Function Documentation

◆ CGUIScrollBar

Member Data Documentation

◆ m_eStyle

◆ m_kKnobAbsRect

◆ m_vDiffKnobMouse

◆ m_vKnobSizeHorizontal

◆ m_vKnobSizeVertical

◆ m_vSliderMaxPos

◆ m_vSliderMinPos

◆ m_vSliderTrackDistance
